SES-431R

Description

TIE ROD END-R 5.75in Straight x 1-1/4in-12 (LH THREADED ROD END)

Alternate SKU

310-229, 310229, 462.ES431R, 462ES431R, R230070, E4616, SES431R, 969056R91, 10QH248P4, ES431R

Weight

4.90

Attribute Value
Product Name SES-431R
End 1 Thread Diameter 1.25 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 5.75 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 1.08 in
Drop Length 0 in
Taper Diameter-major 1.25 in
Taper Height 2.64 in
Taper Length 1.36 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES431R
Dana 220TR115, 220TR117
Dayton 310-229
Eaton 220TR115, 220TR117
Meritor E4616

Skip to the end of the images gallery

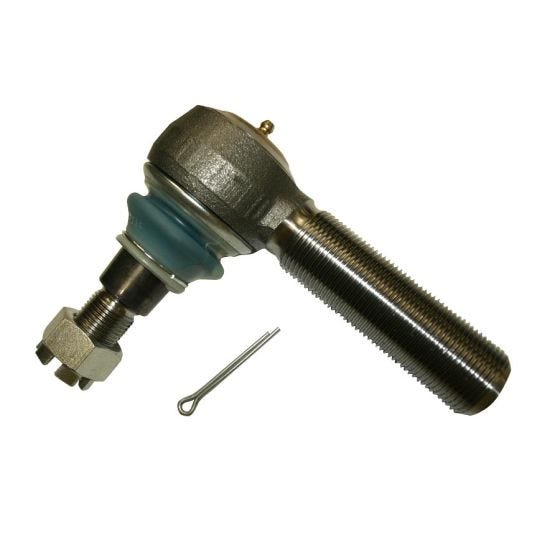

main product photo

LH/Counterclockwise threads on rod end. Verify thread direction.
