SES-431L

Description

TIE ROD END-L 5.75in Straight x 1-1/4in-12 (RH THREADED ROD END)

Alternate SKU

310-228, 310228, 462.ES431L, 462ES431L, R230071, E4617, SES431L, L28SV5000A12, ES431L

Weight

4.90

Attribute Value
Product Name SES-431L
End 1 Thread Diameter 1.25 in
End 1 Threads Per Inch 12
End 1 Thread Direction Clockwise (Right)
Length - Stud Center to End 5.75 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 1.08 in
Drop Length 0 in
Taper Diameter-major 1.25 in
Taper Height 2.64 in
Taper Length 1.36 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES431L
Dana 220TR116
Dayton 310-228
Eaton 220TR116
Meritor E4617

Skip to the end of the images gallery

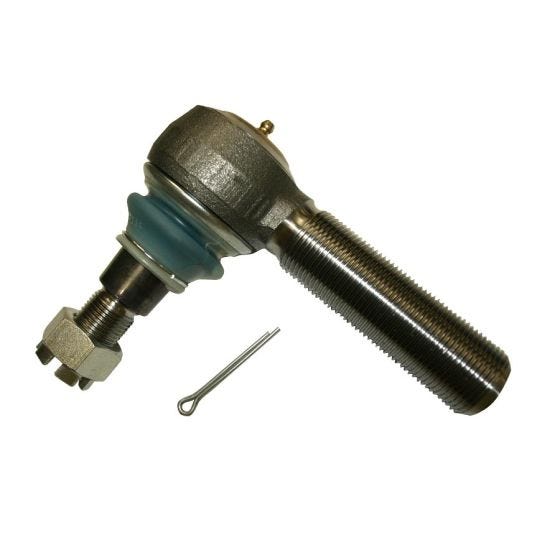

main product photo

RH/Clockwise threads on rod end. Verify thread direction.
