SES-2237R

Description

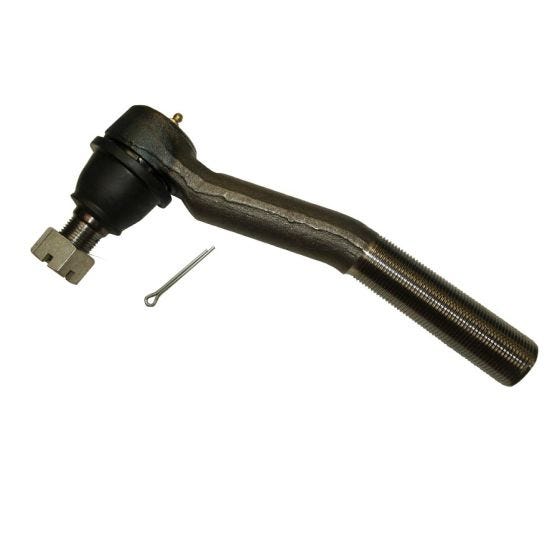

TIE ROD END-R 10.31in x Offset x 1-1/4in-12 (RH THREAD)(2238R)

Alternate SKU

310-592, 310592, 462.ES2238R, 462ES2238R, ES2238R, R230138, SES-2238R, SES2238R, ES9138R, 2237R, 2238R, SES2237R, P6073382210, 66645002, 60961138, 6073382

Weight

5.45

Specifications

Attribute Value
Product Name SES-2237R
End 1 Thread Diameter 1.25 in
End 1 Threads Per Inch 12
End 1 Thread Direction Clockwise (Right)
Length - Stud Center to End 10.3125 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Bent
Taper Diameter-minor 0.97 in
Drop Length 1.04 in
Taper Diameter-major 1.102 in
Taper Height 2.22 in
Taper Length 1.08 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES2238R
Dayton 310-592
Meritor R230138
