SES-2237L

Description

TIE ROD END-L 10.31in x Offset x 1-1/4in-12 (LH THREAD)(2237L)

Alternate SKU

310-591, 310591, 462.ES2237L, 462ES2237L, R230137, ES9137L, SES2237L, 6073380810, 66645001, A6073380810, 60961

Weight

5.50

Attribute Value
Product Name SES-2237L
End 1 Thread Diameter 1.25 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 10.3125 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Bent
Taper Diameter-minor 0.97 in
Drop Length 1.04 in
Taper Diameter-major 1.102 in
Taper Height 2.22 in
Taper Length 1.08 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES2237L
Dayton 310-591
Flagg/Triangle ES9137L
Meritor R230137

Skip to the end of the images gallery

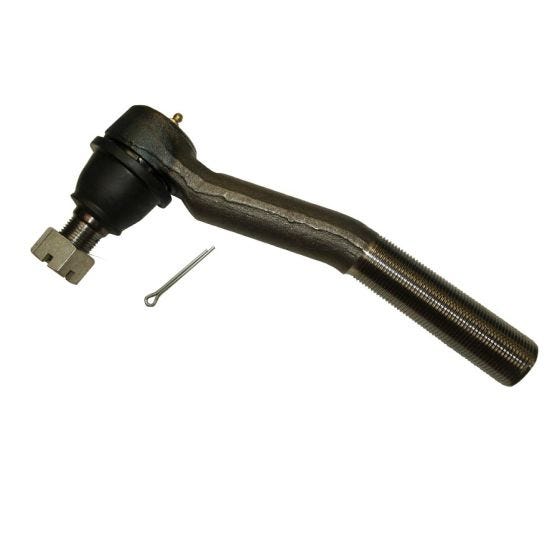

main product photo
