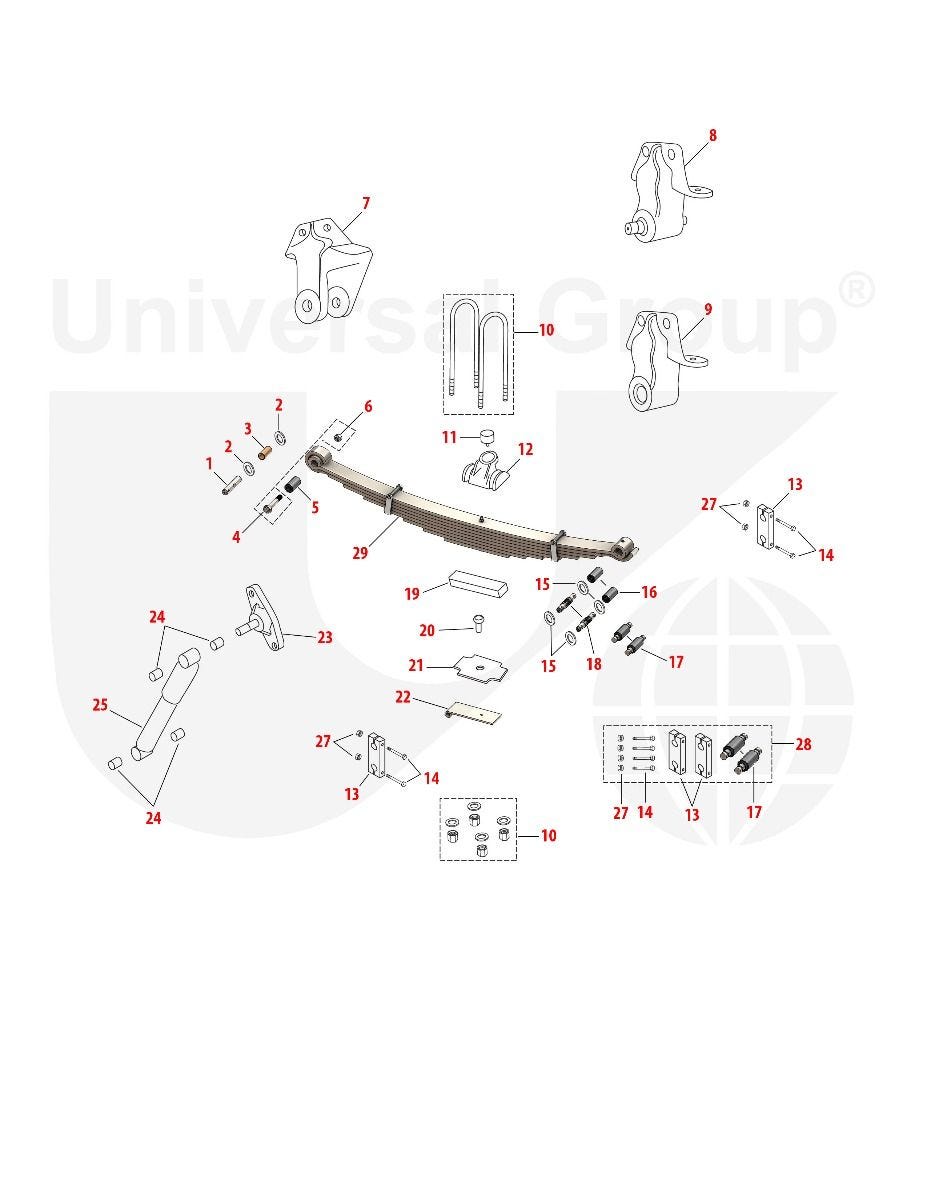

Mack : CH, CL, CX, RB

For items with multiple options, see table below.

1 3 5 13 13 16 17 17 18 24 24 25 29

Grouped product items
No.	SKU	Product Name	Description	Notes
1	SB-1258	SB-1258	SPRING PIN 1-1/4in OD x 6-1/4in L
3	SBM-RNI	SBM-RNI	BI-METAL BUSHING 1-1/2in OD x 1-1/4in ID x 3-1/2in OAL

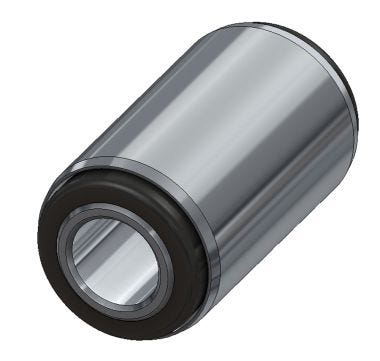

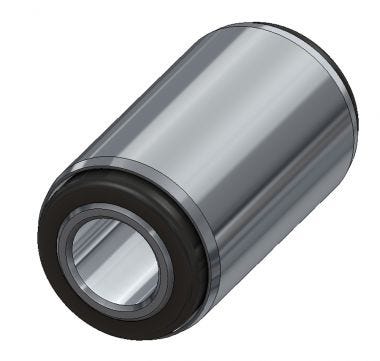

5	RB 188	RB 188	RUBBER ENCASED BUSHING 48mm OD x 24mm ID x 89mm OAL
13	SE-315	SE-315	SIDE BAR 6-3/8in L x 2in W x 1-1/4in H x 4in Ctr-Ctr x 1-1/16in Dia Holes
16	TB 69	TB 69	THREADED BUSHING 1.753in OD x 1-3/8in-6 x 3.5in OAL	Verify spring eye/hanger I.D. size: TB 69 has O.D. = 1.753in, TB 69A has O.D. = 1.766in
17	RB 189	RB 189	RUBBER ENCASED BUSHING 48mm x 139 mm L CTR-CTR SLOT
18	SB-1399	SB-1399	THREADED SPRING PIN 6-5/8in OAL x 1-3/8 in-6 Thread x 5in C-C SLOTS	Use with bushing TB-69.
24	SSA-401754	SSA-401754	Genuine Gabriel Shock Absorber Bushing EB3 style for 2-3/8in OD Eye - 1in Stud
25	SSA-85001	SSA-85001	Genuine Gabriel Fleetline 85000 Shock Absorber
25	SSA-85005	SSA-85005	Genuine Gabriel Fleetline 85000 Shock Absorber
29	62-968-ME	62-968-ME	Tapered Leaf Spring

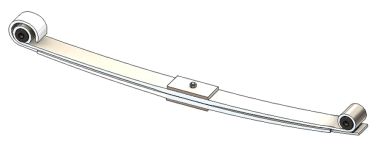

29	62-1044-ME	62-1044-ME	Tapered Leaf Spring
29	62-1044-OE	62-1044-OE	Genuine Hendrickson Tapered Leaf Spring

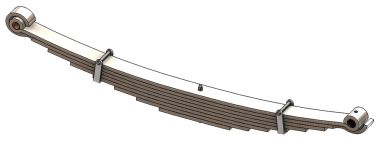

29	62-1018-ME	62-1018-ME	Leaf Spring
