62-968-ME

Description

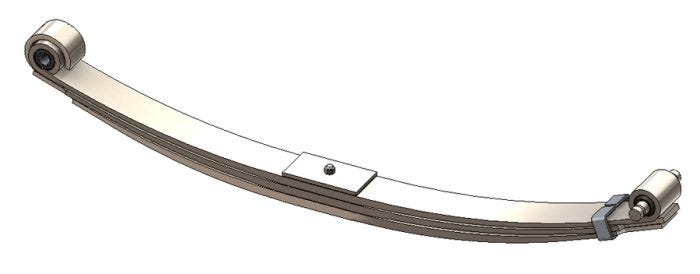

Tapered Leaf Spring
Alternate SKU
62-968, 62968, 2QK3435M, 2QK490, 62968ME
Weight
104.60
  • Attribute Value
  • Product Name 62-968-ME
  • Axle Orientation Front
  • Leaf Width 3.5 in
  • Leaves 3
  • Pack Thickness 2.4375 in
  • Length Axis 1 29.875 in
  • Length Axis 2 25.125 in
  • Free Arch Length 5.5 in
  • Grading Configuration PD/323 3/669 FULL TAPER
  • Pack Quantity 4
  • End 1 Attachment Type Up Turned Eye
  • End 2 Attachment Type Up Turned Eye
  • Bushings Included No
  • End 1 Bushing RB189
  • End 2 Bushing RB188
  • Helper Spring No
  • Load Rate 5400 lb
  • Suspension Grade Type Standard
  • Spring Research Institute Number 62-968
  • Make Mack
