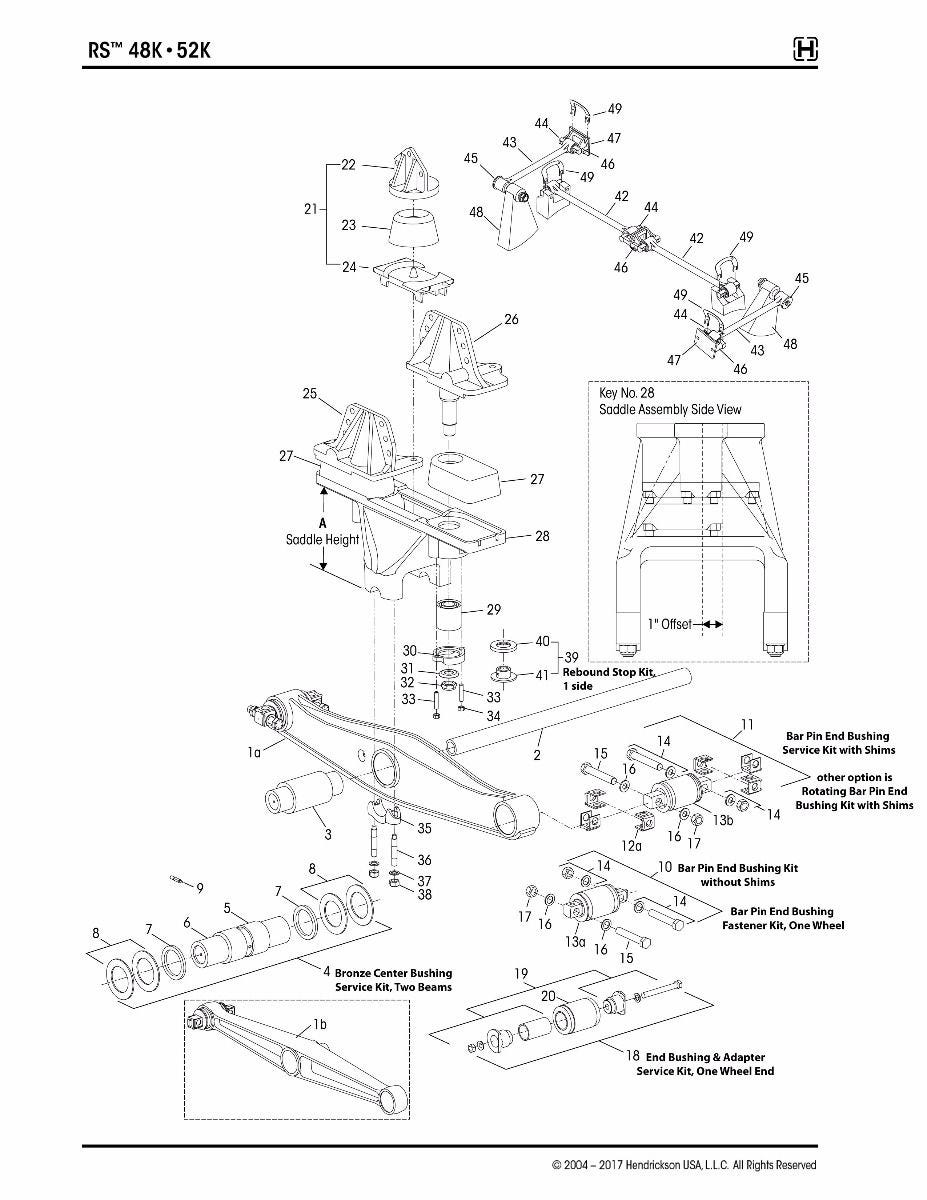

Hendrickson : RS 48K, 52K

For items with multiple options, see table below.

2 3 5 4 7 6 8 8 10 11 12 14 18 19 20 23 27 29 30 31 33 33 39 42 43 44 45 46 49 49 49 49 45 42 27 32 43
Grouped product items
No. SKU Product Name Description Notes
2 H-44643-009 H-44643-009 H-44643-009 Genuine Hendrickson R503 Crosstube 44.88in x 2.438in x 1.718in
3 H-29483-005L H-29483-005L H-29483-005L GENUINE HENDRICKSON RUBBER CENTER BUSHING WITH LOOSE PLUG 46K-52K
4 H-30437-000 H-30437-000 H-30437-000 GENUINE HENDRICKSON 380-520 SERIES BRONZE CENTER BUSHING TWO BEAMS KIT
6 H-14685-000 H-14685-000 H-14685-000 GENUINE HENDRICKSON BEAM CENTER SLEEVE 3-1/2 OD x 2-1/2 ID x 12in OAL
7 H-30334-000 H-30334-000 H-30334-000 GENUINE HENDRICKSON Beam Center Seal
8 H-32365-000 H-32365-000 H-32365-000 Genuine Hendrickson Thrust Washer 3-1/2 in.
10 H-34013-087L H-34013-087L H-34013-087L GENUINE HENDRICKSON BAR PIN KIT (WITHOUT SHIMS) Shims not included.
11 H-34013-088L H-34013-088L H-34013-088L GENUINE HENDRICKSON BAR PIN END BUSHING KIT (WITH SHIMS) (2) 0.25 in x 0.12in shims included
11 H-34013-188L H-34013-188L H-34013-188L GENUINE HENDRICKSON ROTATING BAR PIN BUSHING WITH SHIMS Includes (2) 0.25in x 0.12in shims
12 H-50131-000 H-50131-000 H-50131-000 GENUINE HENDRICKSON BAR PIN SHIM 0.25 x 0.12in
12 H-50130-000 H-50130-000 H-50130-000 GENUINE HENDRICKSON BAR PIN SHIM 0.19 x 0.19in
12 H-57026-000 H-57026-000 H-57026-000 GENUINE HENDRICKSON FLAT BAR PIN SHIM 0.38in
14 H-34013-104 H-34013-104 H-34013-104 GENUINE HENDRICKSON BAR PIN BUSHING FASTENER KIT-(2)BOLTS (4)WASHERS (2)NUTS
18 H-34013-051 H-34013-051 H-34013-051 GENUINE HENDRICKSON 52K EQUALZING BEAM END BUSHING ADAPTER KIT
18 H-34013-050 H-34013-050 H-34013-050 GENUINE HENDRICKSON 48K-52K EQUALZING BEAM END BUSHING ADAPTER KIT
19 H-21140-034L H-21140-034L H-21140-034L GENUINE HENDRICKSON R520 BEAM END ADAPTER ASSEMBLY
20 H-45407-000L H-45407-000L H-45407-000L GENUINE HENDRICKSON 520 SERIES RUBBER END BUSHING
20 H-29878-001L H-29878-001L H-29878-001L GENUINE HENDRICKSON 480-520 SERIES RUBBER END BUSHING
23 H-24209-000 H-24209-000 H-24209-000 GENUINE HENDRICKSON CENTER LOAD CUSHION
27 H-26953-000 H-26953-000 H-26953-000 GENUINE HENDRICKSON LOAD CUSHION
29 H-19279-000 H-19279-000 H-19279-000 GENUINE HENDRICKSON VERTICAL DRIVE BUSHING
30 H-05917-000 H-05917-000 H-05917-000 GENUINE HENDRICKSON SADDLE BUSHING CAP
31 H-08536-000 H-08536-000 H-08536-000 Genuine Hendrickson Frame Hanger Concave Washer 1-1/2 in.
32 H-19111-001 H-19111-001 H-19111-001 GENUINE HENDRICKSON STUD 5/8in-18 UNF x 2.88in.
39 H-31005-001L H-31005-001L H-31005-001L Genuine Hendrickson REBOUND STOP KIT (1 SIDE)
42 H-62000-565 H-62000-565 H-62000-565 Genuine Hendrickson ULTRA ROD S-S 565mm (22-1/4in)
42 H-8240-0000-595 H-8240-0000-595 H-8240-0000-595 Genuine Hendrickson TRAAX ROD Heavy Duty S-S 595mm (23-7/16in)
42 H-8240-0000-575 H-8240-0000-575 H-8240-0000-575 Genuine Hendrickson TRAAX ROD Heavy Duty S-S 575mm (22-5/8in)
42 H-8240-0000-560 H-8240-0000-560 H-8240-0000-560 Genuine Hendrickson TRAAX ROD Heavy Duty S-S 560mm (22-1/16in)
43 H-8244-0099-625 H-8244-0099-625 H-8244-0099-625 Genuine Hendrickson TRAAX ROD Heavy Duty S-T 625mm (24-5/8in)
43 H-8244-0099-610 H-8244-0099-610 H-8244-0099-610 Genuine Hendrickson TRAAX ROD Heavy Duty S-T 610mm (24in)
43 H-8244-0099-585 H-8244-0099-585 H-8244-0099-585 Genuine Hendrickson TRAAX ROD Heavy Duty S-T 585mm (23in)
43 H-8240-0000-620 H-8240-0000-620 H-8240-0000-620 Genuine Hendrickson TRAAX ROD Heavy Duty S-S 620mm (24-3/8in)
43 H-62350-635 H-62350-635 H-62350-635 Genuine Hendrickson ULTRA ROD S-T 635mm (25in)
43 H-62350-615 H-62350-615 H-62350-615 Genuine Hendrickson ULTRA ROD S-T 615mm (24-3/16in)
44 H-47691-000 H-47691-000 H-47691-000 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING For 5/8" Bolt Holes
44 H-64400-002 H-64400-002 H-64400-002 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING
44 H-66649-002L H-66649-002L H-66649-002L GENUINE HENDRICKSON XTRB TORQUE ROD BAR PIN BUSHING
45 H-64697-000 H-64697-000 H-64697-000 GENUINE HENDRICKSON TORQUE ROD TAPER PIN BUSHING
46 H-22186-000 H-22186-000 H-22186-000 GENUINE HENDRICKSON TORQUE ROD FRAME BRACKET
49 H-49689-000 H-49689-000 H-49689-000 Genuine Hendrickson Torque Rod Shim 1/16in (1.52mm) 1/16in 0.06in (1.52mm)
