H-8244-0099-585

Description

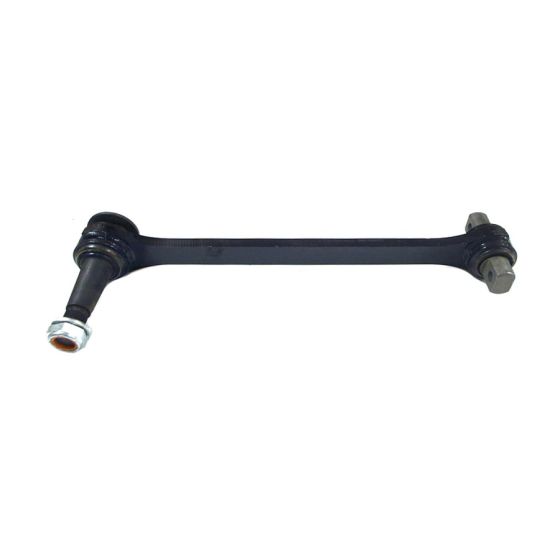

Genuine Hendrickson TRAAX ROD Heavy Duty S-T 585 mm

Alternate SKU

345-947, 345947, 345-440099585, 345440099585, TMR674, 8244-0099-585, 82440099585, H82440099585, TR50-41587, TR5041587, 072350-585, 72350-585, 072350585, 72350585, 072350-585S, 72350-585S, 072350585S, 72350585S, 062350-590, 62350-590, 062350590, 62350590

Weight

22.01

Specifications

Attribute Value
Product Name H-8244-0099-585
Make Hendrickson
Center To Center Length 585 mm
End 1 Type Straddle
End 2 Type Taper
End 1 Bushing Non-Rebushable
End 1 Bolt Hole Diameter 0.625 in
End 1 Bolt Hole Center To Center Length 4.375 in
End 2 Bushing Non-Rebushable
End 2 Bushing Angle Taper Down
End 2 Bushing Taper Length 3 in
End 2 Bushing Thread Diameter 1.25 in
Bushings Included Yes
Adjustable No

Applications

Name
Kenworth : AG100 Airglide
Hendrickson : RS 40K, 46K
Hendrickson : RS 48K, 52K
Hendrickson : Haulmaax EX

Cross Reference

Company Sku
Atro TR50-41587
Automann TMR674
Dayton 345-440099585
Hendrickson 8244-0099-585
