Genuine OEM

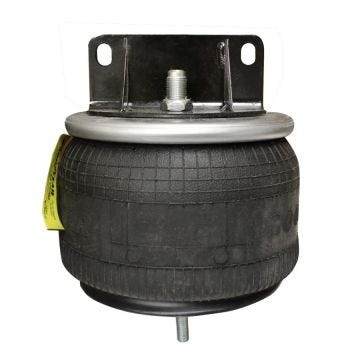

main product photo

AB-1R11-220 w/ bumper. AB-1R11-219 w/o bumper.

Skip to the beginning of the images gallery

AB-1R11-220

Description

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston

Alternate SKU

1R11-220, 69657, 9 9-10 P 862, 66113, 9 9-10 P 862, W01-358-9618, 9618, K-303-19, K-303-25, AS9618, AS-8862

Weight (lb)

18.00

Attribute Value
Top Plate Bolt Hole Quantity 1
Bottom Plate Bolt Hole Quantity 1
Top Plate Diameter 9 in
Bottom Plate Diameter 8.5 in
Piston Material Steel
Minimum Height 6.2 in
Maximum Height 12 in
Top Plate Center To Center Diameter 1.5 in
Bottom Plate Alignment Parallel
Bracket Yes
Bumper Yes
Bellows Number 566-22-3-015, 566-22-3-021
Bellows Color Black
Bellows Material Textile Reinforced Polymer Rubber
Mounting Hardware Included No
Air Spring Type Rolling Lobe

Download Specification Sheet

Cross Reference

Company Sku
Automann AB1DK20H-9618, 566.CT69657
Automann Bellows 1DK20H
Continental 69657
Firestone W01-358-9618
Firestone Bellows 1T15LA0
Flagg/Triangle AS-8862
Goodyear 1R11-220
Goodyear Bellows 566-22-3-015, 566-22-3-021
Kenworth K-303-19
