AB-1R11-219

Description

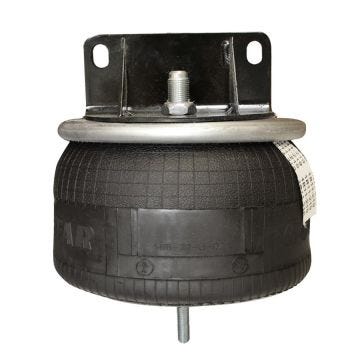

Genuine Goodyear Air Spring - Rolling Lobe w/ Steel Piston

Alternate SKU

1R11-219, 66112, 9 9-9 P 860, 999P860, 69656, W01-358-9617, 9617, K-303-18, K-303-22, AS-8514, 352-9617, 452-9617, 452-9617L, 566.CT69656, AB1DK20G-9617, 566.ER9617, AS-8860, AS9617, AS96170, FS9617, WA01-9617C

Weight (lb)

16.00

Specifications

Attribute Value
Top Plate Bolt Hole Quantity 1
Bottom Plate Bolt Hole Quantity 1
Top Plate Diameter 9 in
Bottom Plate Diameter 8.5 in
Piston Material Steel
Minimum Height 4.2 in
Maximum Height 12 in
Top Plate Center To Center Diameter 1.5 in
Bottom Plate Alignment Parallel
Bracket Yes
Bumper No
Bellows Number 566-22-3-015, 566-22-3-021
Bellows Color Black
Bellows Material Textile Reinforced Polymer Rubber
Mounting Hardware Included No
Air Spring Type Rolling Lobe

Downloads

Download Specification Sheet

Cross Reference

Company Sku
Automann 566.CT69656, AB1DK20G-9617, 566.ER9617
Automann Bellows 1DK20G
Continental 69656
Dayton 352-9617, 452-9617, 452-9617L
Firestone W01-358-9617
Firestone Bellows 1T15LA, 1T15LA-1
Flagg/Triangle AS-8860, AS-8514
Goodyear 1R11-219
Goodyear Bellows 566-22-3-015, 566-22-3-021
Kenworth K-303-18
