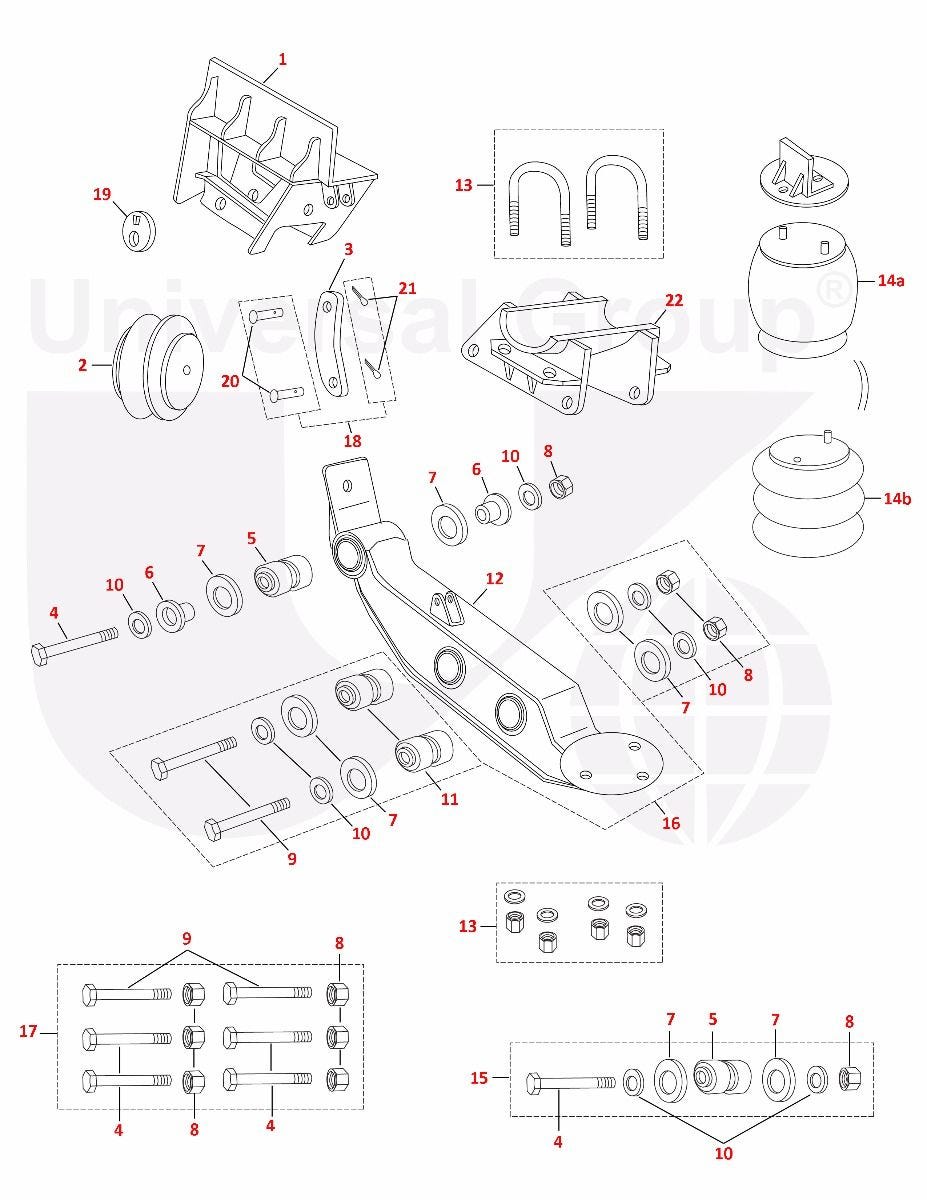

Watson & Chalin : TL1300, TL2200, STL2200 - Trailer Lift Axle

For items with multiple options, see table below.

2 5 5 7 7 7 7 7 7 13 14a
Grouped product items
No. SKU Product Name Description Notes

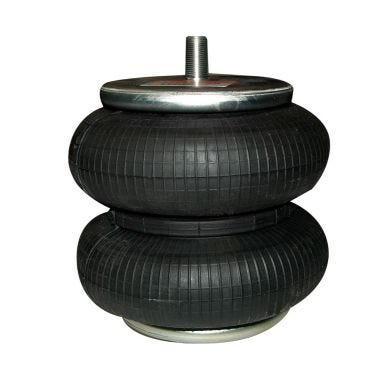

2 AB-6897 AB-6897 AB-6897 Air Spring - Double Convoluted
5 SN-90008139 SN-90008139 SN-90008139 Beam End Pivot Bushing Rubber-Neway 3-1/2in OD x 1-1/8 ID x 5-1/4 L
5 SWC-10050 SWC-10050 SWC-10050 Genuine Watson & Chalin RUBBER PIVOT BUSHING 3.512in OD x 1-1/8in ID x 5-1/4in OAL
13 SBR-5108R SBR-5108R SBR-5108R U-Bolt SINGLE 3/4in-16 D x 5-1/8in W x 8in L RND [NEW: UBK-34-5-080RD] (1) U-Bolt only. Washers and Deep Nuts sold separately.

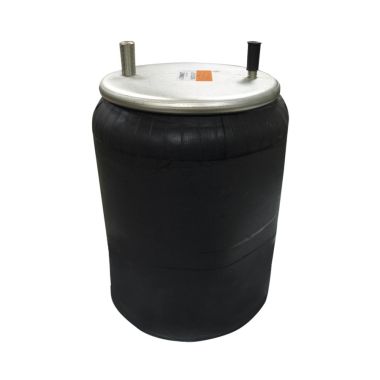

14a AB-9370 AB-9370 AB-9370 Air Spring-Rolling Lobe w/ Composite Piston
