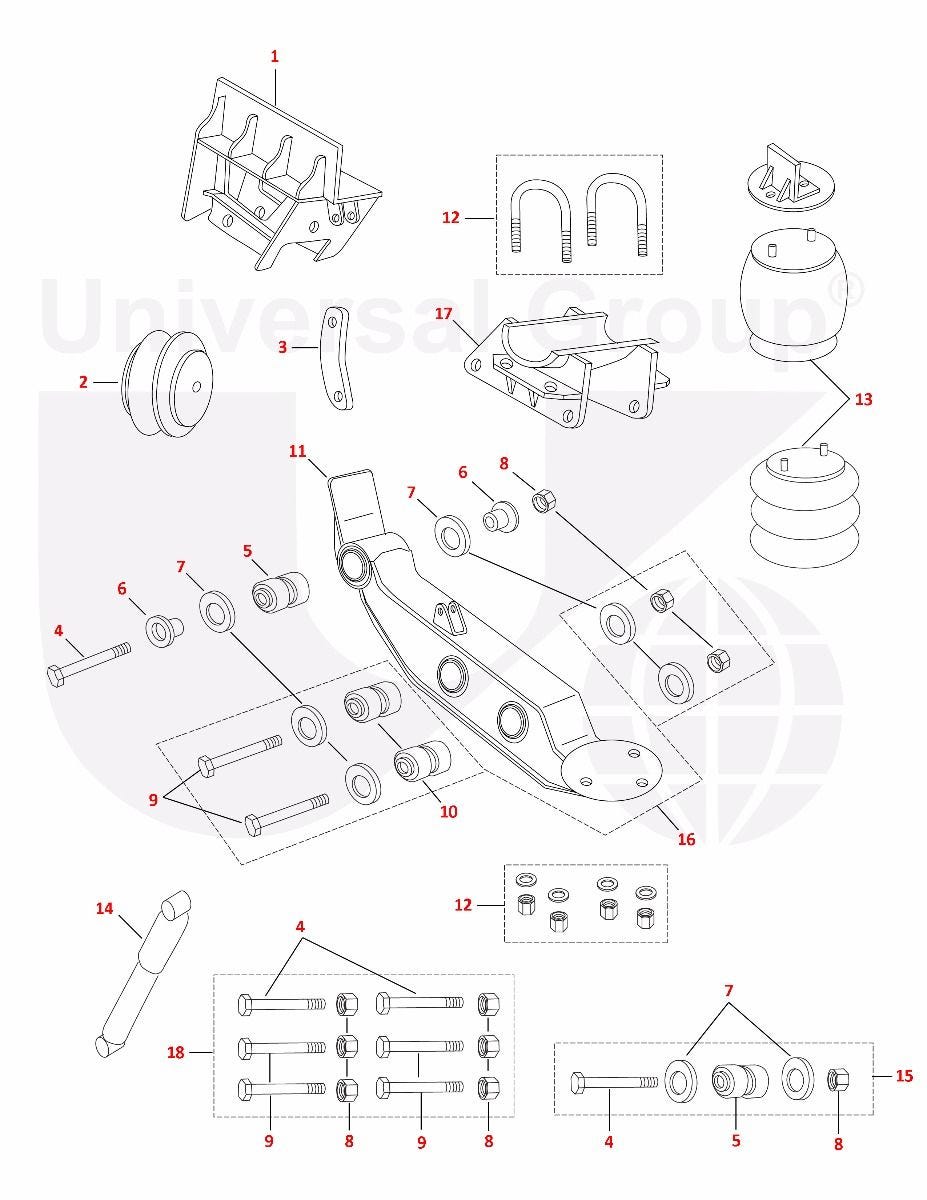

Watson & Chalin : AL2200 - Lift Axle

For items with multiple options, see table below.

2 5 5 7 7 7 10 12 13 14

Grouped product items
No.	SKU	Product Name	Description	Notes
2	AB-6897	AB-6897	Air Spring - Double Convoluted
5	SN-90008139	SN-90008139	Beam End Pivot Bushing Rubber-Neway 3-1/2in OD x 1-1/8 ID x 5-1/4 L
5	SWC-10050	SWC-10050	Genuine Watson & Chalin RUBBER PIVOT BUSHING 3.512in OD x 1-1/8in ID x 5-1/4in OAL
12	SBR-5108R	SBR-5108R	U-Bolt SINGLE 3/4in-16 D x 5-1/8in W x 8in L RND [NEW: UBK-34-5-080RD]	(1) U-Bolt only. Washers and Deep Nuts sold separately.
13	AB-9243	AB-9243	Air Spring-Rolling Lobe w/ Composite Piston
13	AB-9370	AB-9370	Air Spring-Rolling Lobe w/ Composite Piston
14	SSA-83203	SSA-83203	Genuine Gabriel Fleetline 83000 Shock Absorber	Gas shock upgrade: SSA-89436
14	SSA-85000	SSA-85000	Genuine Gabriel Fleetline 85000 Shock Absorber	Gas shock upgrade: SSA-89436
