UNA-504-03LO
Description

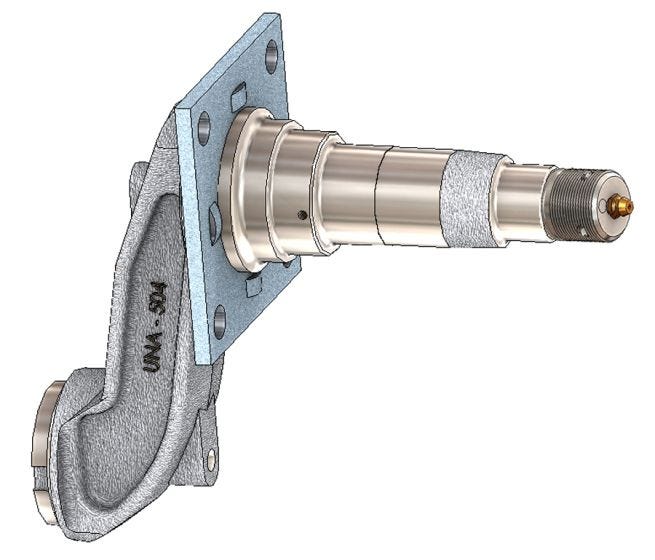

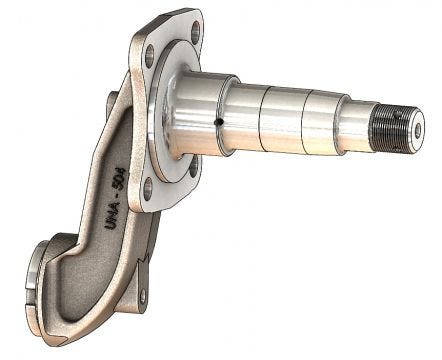

TRAILER DROP SPINDLE #84 3500 LB w/FLANGE LUBED FITS 2-3/8in TUBE
Alternate SKU
93124, UNA50403LO, UNA-504, UNA504
Weight
7.27
- Attribute Value
- Product Name UNA-504-03LO
- Type 84
- Greasable Yes
- Load Capacity 1750 lb
- Inner Bearing L68149
- Drop Length 4 in
- Inner Bearing Inside Diameter 1.376 in
- Outer Bearing L44649
- Outer Bearing Inside Diameter 1.062 in
- Grease Seal Inside Diameter 1.72 in
- Spindle Thread Diameter 1 in
- Spindle Threads Per Inch 14
- Cotter Pin Hole Yes
- Flanged Yes
- Flange Thickness 0.25 in
