UNA-220

Description

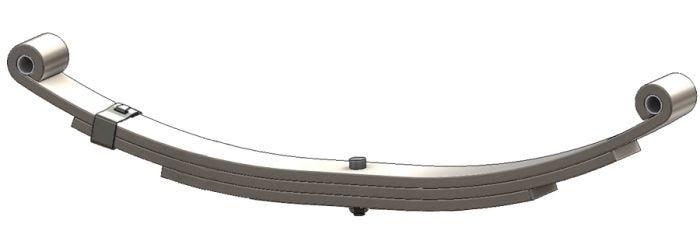

Utility Trailer Leaf Spring-Double Eye 3/Leaf 2000 lb. Capacity each

Alternate SKU

US-1051, US1051, UDB25253SHD, UNA-109, UNA109, 72-24, 7224, 1762, 93102, SW-3, SW3, PP3, 33839, LD25253ML, UNA220, 072-024-00, 72-024-00, 07202400, 7202400

Weight

11.46

Specifications

Attribute Value
Product Name UNA-220
Leaf Width 1.75 in
Leaves 3
Length Axis 1 13.25 in
Length Axis 2 13.25 in
Free Arch Length 3 in
Load Rate 2000 lb
Bushings Included Yes
Grading Configuration 2/401 1/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 25.25 in

Cross Reference

Company Sku
Automann UDB25253SHD
Dayton US-1051
Dexter 072-024-00

Skip to the end of the images gallery

UNA-109; 72-24; 1762; 93102; SW-3; PP3; PR-3
