UNA-219

Description

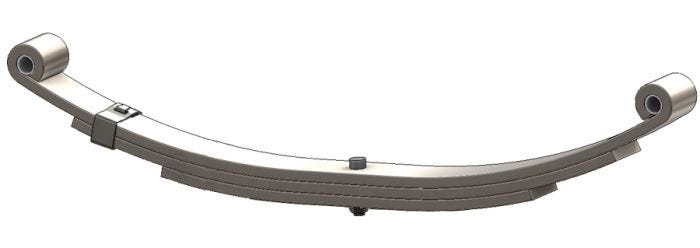

Utility Trailer Leaf Spring-Double Eye 3/Leaf 1250 lb. Capacity each

Alternate SKU

US-1018, US1018, UDB25253, UNA-107, UNA107, 72-22, 7222, 93101, SW-3B, SW3B, 1760, 933160, LD25253J, UNA219, 072-022-00, 72-022-00, 07202200, 7202200

Weight

9.54

Attribute Value
Product Name UNA-219
Leaf Width 1.75 in
Leaves 3
Length Axis 1 13.29 in
Length Axis 2 13.29 in
Free Arch Length 3.18 in
Load Rate 1250 lb
Bushings Included Yes
Grading Configuration 2/323 1/291
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 25.13 in

Cross Reference

Company Sku
Automann UDB25253
Dayton US-1018
Dexter 072-022-00

Skip to the end of the images gallery

main product photo

UNA-107; 72-22; 93101; SW-3B; 1760; PP3A; 8101; PR-722
