UNA-218

Description

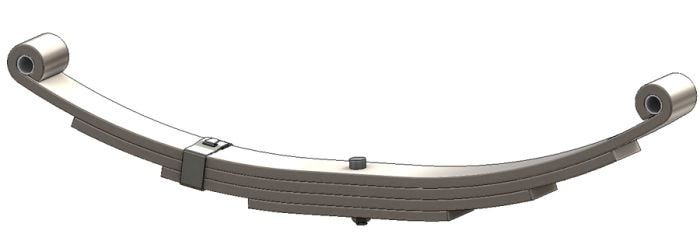

Utility Trailer Leaf Spring-Double Eye 4/Leaf 2500 lb. Capacity each

Alternate SKU

US-1065, US1065, UDB25254XHD, UNA-110, UNA110, UNA218, 1763, 93181, 93103, SW-4, SW4, LD25254ML, 072-025-00, 72-025-00, 07202500, 7202500, PR-4, PR4, 27-202, 27202, 72-25, 7225

Weight

14.10

Specifications

Attribute Value
Product Name UNA-218
Leaf Width 1.75 in
Leaves 4
Length Axis 1 13.25 in
Length Axis 2 13.25 in
Free Arch Length 3 in
Load Rate 2500 lb
Bushings Included Yes
Grading Configuration 2/401 2/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 25.25 in

Cross Reference

Company Sku
Automann UDB25254XHD
Dayton US-1065
Dexter 072-025-00
Redneck PR4
Sirco 72-25
