UNA-188

Description

Utility Trailer Leaf Spring-Double Eye 5/Leaf 1625 lb. Capacity each

Alternate SKU

US-1017, US1017, UDB24005, UNA188, 545-5, 5455, 125-5, 1255, LD24005H

Weight (lb)

13.65

Attribute Value
Product Name UNA-188
Leaf Width 1.75 in
Leaves 5
Free Arch Length 3.19 in
Grading Configuration 5/291
Length Axis 1 12.64 in
Length Axis 2 12.64 in
Load Rate 1625 lb
Bushings Included Yes
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-226
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-226
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 24 in

Download Specification Sheet

Cross Reference

Company Sku
Automann UDB24005
Dayton US-1017

Skip to the end of the images gallery

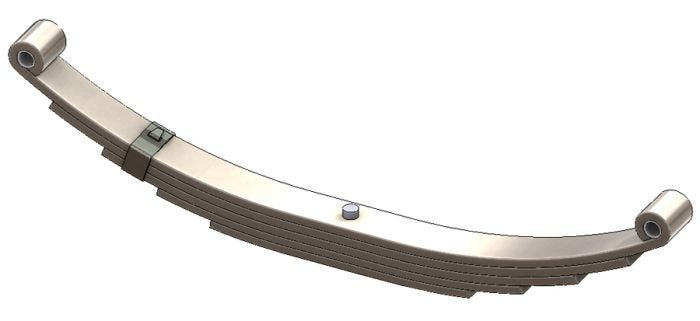

main product photo

545-5; 125-5
