UNA-180
Description

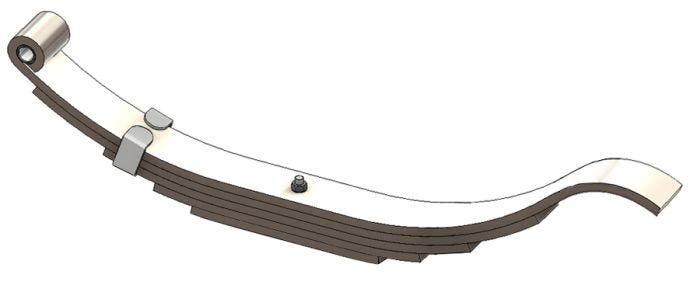

Utility Trailer Leaf Spring-Radius End Slipper 5/Leaf 1240 lb. Capacity each
Alternate SKU
US-3069, US3069, URB24255, WI-5, WI5, 4351-12, 435112, WI5 435112, WI5435112, LR24505F, UNA180
Weight
10.32
- Attribute Value
- Product Name UNA-180
- Leaf Width 1.75 in
- Leaves 5
- Length Axis 1 14.5 in
- Length Axis 2 12 in
- Free Arch Length 4 in
- Load Rate 1240 lb
- Bushings Included Yes
- Grading Configuration 5/237
- End 1 Attachment Type Up Turned Eye
- End 1 Bushing PE-226
- End 1 Bushing Material Nylon
- End 1 Bushing Inside Diameter 0.5 in
- End 1 Attachment Inside Diameter 0.6875 in
- Suspension Grade Type Standard
- Helper Spring No
- End Type Radius End Slipper
- Free Length 24.62 in
- Company Sku
- Automann URB24255
- Dayton US-3069
