UNA-135

Description

Utility Trailer Leaf Spring-Double Eye 3/Leaf 1250 lb. Capacity each

Alternate SKU

US-1014, US1014, UDB23133, 72-06, 7206, 93182-12, 9318212, LD23123JH, UNA135

Weight

9.00

Attribute Value
Product Name UNA-135
Leaf Width 1.75 in
Leaves 3
Length Axis 1 12.5 in
Length Axis 2 12.5 in
Free Arch Length 3.63 in
Load Rate 1250 lb
Bushings Included Yes
Grading Configuration 2/323 1/291
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 23.13 in

Cross Reference

Company Sku
Automann UDB23133
Dayton US-1014

Skip to the end of the images gallery

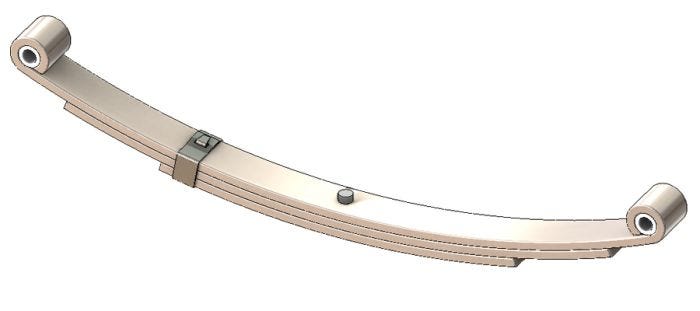

main product photo

72-06; 93182-12; 8119
