UNA-124

Description

Utility Trailer Leaf Spring-Double Eye 4/Leaf 1000 lb. Capacity each

Alternate SKU

US-1015, US1015, UDB26004, 26-1000, 261000, UNA-021, UNA021, UNA-156, UNA156, UNA124, AS-4, AS4, 5015-4, 50154, LD26004F

Weight

10.53

Attribute Value
Product Name UNA-124
Leaf Width 1.75 in
Leaves 4
Length Axis 1 14.07 in
Length Axis 2 14.07 in
Free Arch Length 4 in
Load Rate 1000 lb
Bushings Included Yes
Grading Configuration 4/259
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 26 in

Cross Reference

Company Sku
Automann UDB26004
Dayton US-1015

Skip to the end of the images gallery

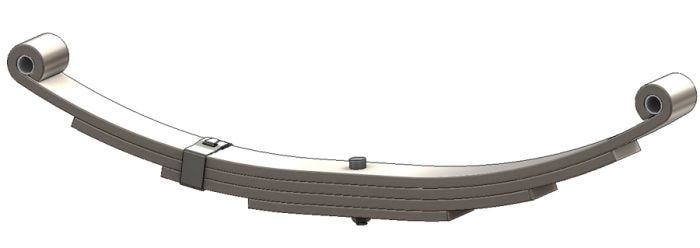

main product photo

26-1000; UNA-021; AS-4; 5015-4; UNA-156
