UNA-123

Description

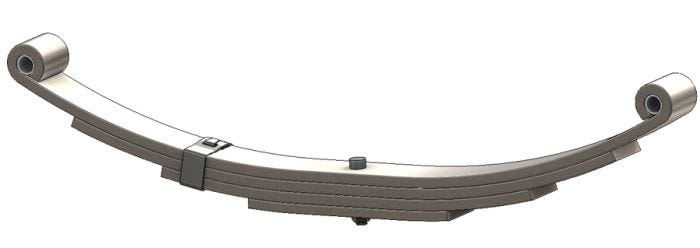

Utility Trailer Leaf Spring-Double Eye 4/Leaf 750 lb. Capacity each

Alternate SKU

26-750, 26750, UNA-239, UNA239, UNA123

Weight

9.62

Attribute Value
Product Name UNA-123
Leaf Width 1.75 in
Leaves 4
Length Axis 1 14.07 in
Length Axis 2 14.07 in
Free Arch Length 4.12 in
Load Rate 750 lb
Bushings Included Yes
Grading Configuration 4/237
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 26 in
