UNA-115

Description

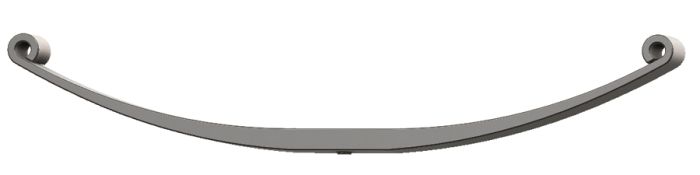

Utility Trailer Leaf Spring-Double Eye 1/Leaf 3000 lb. Capacity each

Alternate SKU

UDB25251T, 72-40, 7240, TE-330, TE330, MD-35, MD35, TE330, 93118, 7240TE330MD3593118, TE330MD3593118, 072-040-00, 72-040-00, 07204000, 7204000, 72-040, 7240

Weight

9.00

Specifications

Attribute Value
Product Name UNA-115
Leaf Width 1.75 in
Leaves 1
Length Axis 1 13.2 in
Length Axis 2 13.2 in
Free Arch Length 3 in
Load Rate 3000 lb
Bushings Included No
Grading Configuration 1/850 FULL TAPER
End 1 Attachment Type Up Turned Eye
End 1 Attachment Inside Diameter 0.59375 in
End 2 Attachment Type Up Turned Eye
End 2 Attachment Inside Diameter 0.59375 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 25.25 in

Cross Reference

Company Sku
Automann UDB25251T
Dexter 072-040-00
