UNA-114

Description

Utility Trailer Leaf Spring-Double Eye 4/Leaf 1500 lb. Capacity each

Alternate SKU

US-1037, US1037, UDB23504, 545-4L, 5454L, 125-4, 1254, UNA-175, UNA175, UNA114, LD23504H

Weight

10.80

Attribute Value
Product Name UNA-114
Leaf Width 1.75 in
Leaves 4
Length Axis 1 12.68 in
Length Axis 2 12.68 in
Free Arch Length 3.56 in
Load Rate 1500 lb
Bushings Included Yes
Grading Configuration 4/291
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 23.5 in

Cross Reference

Company Sku
Automann UDB23504
Dayton US-1037

Skip to the end of the images gallery

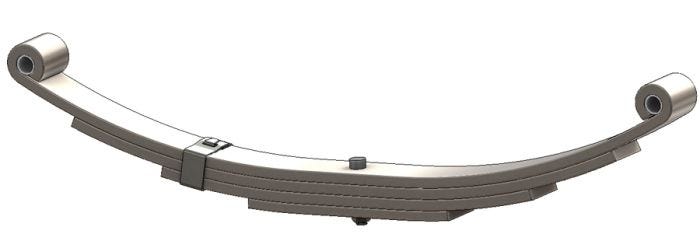

main product photo

545-4L; 125-4; UNA-175
