UNA-111

Description

Utility Trailer Leaf Spring-Double Eye 5/Leaf 3000 lb. Capacity each

Alternate SKU

US-1075, US1075, UDB25255, 1764, SW-5, SW5, 93163, 33600, 33600 LD25255L, 33600LD25255L, UNA111, TS534-5, TS5345

Weight

16.20

Attribute Value
Product Name UNA-111
Leaf Width 1.75 in
Leaves 5
Length Axis 1 13.33 in
Length Axis 2 13.33 in
Free Arch Length 3.12 in
Load Rate 3000 lb
Bushings Included Yes
Grading Configuration 5/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 25.25 in

Cross Reference

Company Sku
Automann UDB25255
Dayton US-1075

Skip to the end of the images gallery

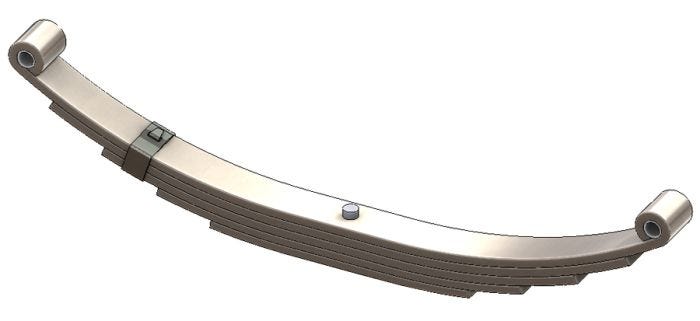

main product photo

1764; SW-5; 93163; 33600; PR-5; 8108 TS534-5
