UNA-100
Description

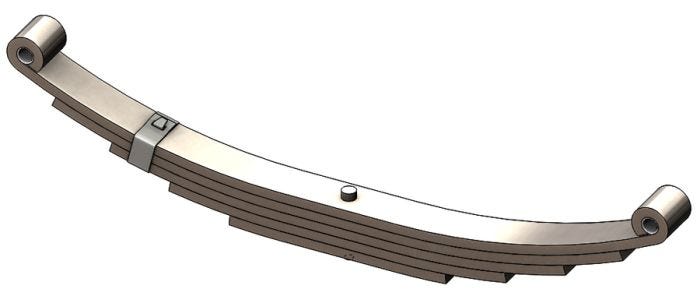

Utility Trailer Leaf Spring-Double Eye 5/Leaf 3000 lb. Capacity each
Alternate SKU
072-073-00, 72-073-00, 07207300, 7207300, 72-73, 7273, UNA100
Weight
16.60
- Attribute Value
- Product Name UNA-100
- Leaf Width 1.75 in
- Leaves 5
- Length Axis 1 13.34 in
- Length Axis 2 13.34 in
- Free Arch Length 2.83 in
- Load Rate 3000 lb
- Bushings Included Yes
- Grading Configuration 5/401
- End 1 Attachment Type Up Turned Eye
- End 1 Bushing PE-227
- End 1 Bushing Material Nylon
- End 1 Bushing Inside Diameter 0.5625 in
- End 2 Bushing PE-227
- End 2 Bushing Material Nylon
- End 2 Bushing Inside Diameter 0.5625 in
- Suspension Grade Type Standard
- Helper Spring No
- End Type Double Eye
- Free Length 25.38 in
- Company Sku
- Dexter 072-073-00
