UNA-079

Description

Utility Trailer Leaf Spring-Double Eye 4/Leaf 2500 lb. Capacity each

Alternate SKU

US-1063, US1063, UDB23134, 72-20, 7220, 93183, WAH-4, WAH4, UNA079, TS524-4, TS5244, LD23124L, 072-020-00, 72-020-00, 07202000, 7202000

Weight

13.34

Attribute Value
Product Name UNA-079
Leaf Width 1.75 in
Leaves 4
Length Axis 1 12.56 in
Length Axis 2 12.56 in
Free Arch Length 3.63 in
Load Rate 2500 lb
Bushings Included Yes
Grading Configuration 4/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 23.13 in

Cross Reference

Company Sku
Automann UDB23134
Dayton US-1063
Dexter 072-020-00

Skip to the end of the images gallery

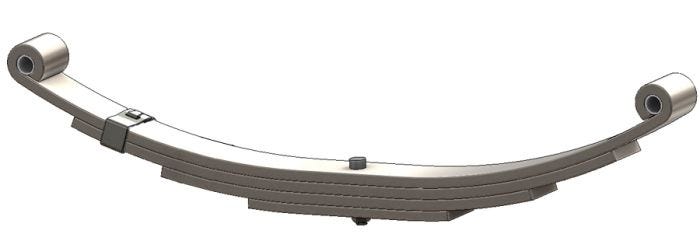

main product photo

72-20; 93183; WAH-4; TS524-4
