UNA-055

Description

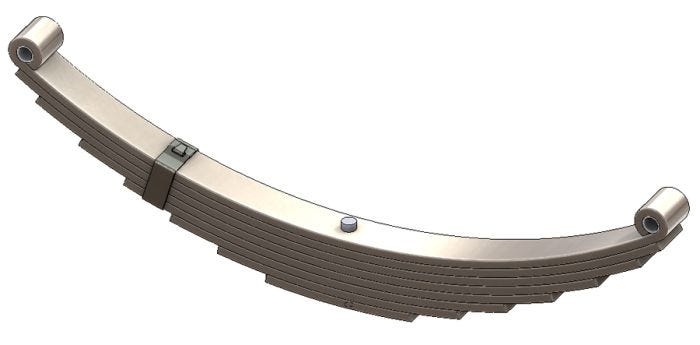

Utility Trailer Leaf Spring-Double Eye 8/Leaf 4000 lb. Capacity each

Alternate SKU

US-1091, US1091, UDB26008, AWS-8, AWS8, UNA055

Weight

27.90

Attribute Value
Product Name UNA-055
Leaf Width 1.75 in
Leaves 8
Length Axis 1 14 in
Length Axis 2 14 in
Free Arch Length 4.25 in
Load Rate 4000 lb
Bushings Included Yes
Grading Configuration 8/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 26 in

Cross Reference

Company Sku
Automann UDB26008
Dayton US-1091
