UNA-053

Description

Utility Trailer Leaf Spring-Double Eye 6/Leaf 3000 lb. Capacity each

Alternate SKU

US-1083, US1083, UDB26006, AWS-6, AWS6, SW-626HD, SW626HD, AWS6 SW626HD LD26006L, AWS6SW626HDLD26006L, UNA053, TS544-6, TS5446

Weight

19.64

Attribute Value
Product Name UNA-053
Leaf Width 1.75 in
Leaves 6
Length Axis 1 14 in
Length Axis 2 14 in
Free Arch Length 4.25 in
Load Rate 3000 lb
Bushings Included Yes
Grading Configuration 6/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 26 in

Cross Reference

Company Sku
Automann UDB26006
Dayton US-1083

Skip to the end of the images gallery

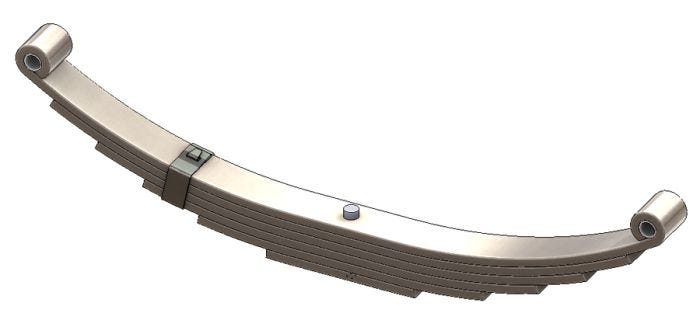

main product photo

AWS-6; SW-626HD; 8114; TS544-6
