UNA-052

Description

Utility Trailer Leaf Spring-Double Eye 5/Leaf 2500 lb. Capacity each

Alternate SKU

US-1071, US1071, UDB26005HD, AWS-5, AWS5, W-526HD, W526HD, LD26005L, UNA052, TS544-5, TS5445, DS-5H, DS5H

Weight

16.49

Attribute Value
Product Name UNA-052
Leaf Width 1.75 in
Leaves 5
Length Axis 1 14 in
Length Axis 2 14 in
Free Arch Length 4.25 in
Load Rate 2500 lb
Bushings Included Yes
Grading Configuration 5/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-227
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-227
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 26 in

Cross Reference

Company Sku
Automann UDB26005HD
Dayton US-1071

Skip to the end of the images gallery

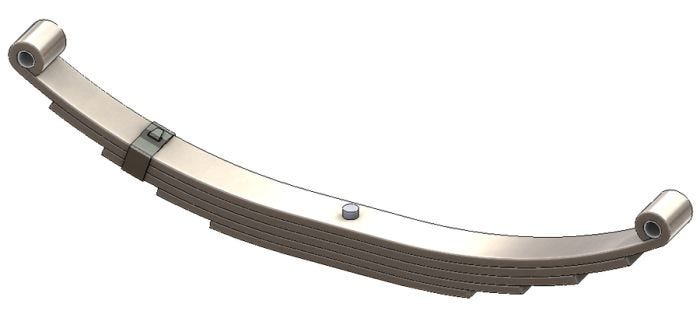

main product photo

AWS-5; W-526HD; TS544-5
