UNA-041

Description

Utility Trailer Leaf Spring-Double Eye 3/Leaf 1500 lb. Capacity each

Alternate SKU

US-1007, US1007, UDB20003, LD20003J, UNA041

Weight

9.39

Attribute Value
Product Name UNA-041
Leaf Width 1.75 in
Leaves 3
Length Axis 1 11.1 in
Length Axis 2 11.1 in
Free Arch Length 3.25 in
Load Rate 1500 lb
Bushings Included Yes
Grading Configuration 3/323
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-225
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-225
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 20 in

Cross Reference

Company Sku
Automann UDB20003
Dayton US-1007

Skip to the end of the images gallery

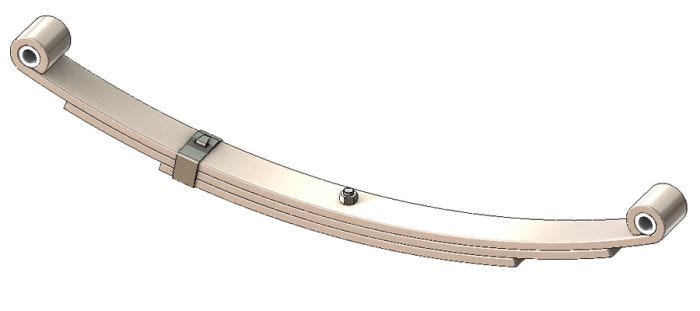

main product photo
