UNA-032

Description

Utility Trailer Leaf Spring-Double Eye 7/Leaf 1500 lb. Capacity each

Alternate SKU

US-1038, US1038, UDB29257, LD29007F, UNA032

Weight

18.95

Attribute Value
Product Name UNA-032
Leaf Width 1.75 in
Leaves 7
Length Axis 1 15.63 in
Length Axis 2 15.63 in
Free Arch Length 4 in
Load Rate 1500 lb
Bushings Included Yes
Grading Configuration 7/259
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-225
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-225
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 29.7 in

Cross Reference

Company Sku
Automann UDB29257
Dayton US-1038

Skip to the end of the images gallery

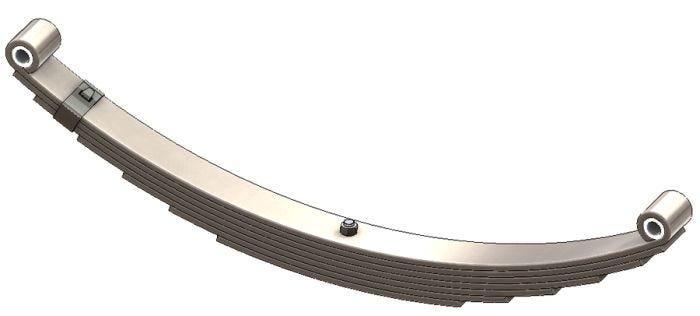

main product photo
