UNA-030

Description

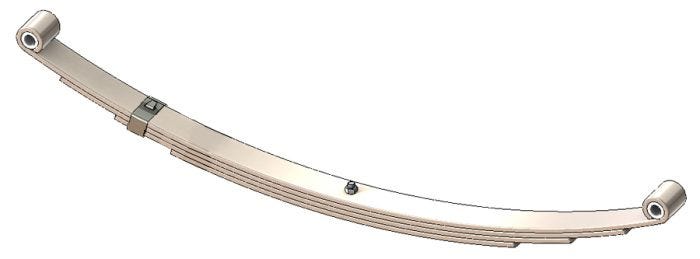

Utility Trailer Leaf Spring-Double Eye 4/Leaf 1290 lb. Capacity each

Alternate SKU

UNA030

Weight

9.25

Attribute Value
Product Name UNA-030
Leaf Width 1.75 in
Leaves 4
Length Axis 1 10.75 in
Length Axis 2 10.75 in
Free Arch Length 3.25 in
Load Rate 1290 lb
Bushings Included Yes
Grading Configuration 4/259
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-226
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5 in
End 1 Attachment Inside Diameter 0.6875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-226
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5 in
End 2 Attachment Inside Diameter 0.6875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 19.92 in
