UNA-022

Description

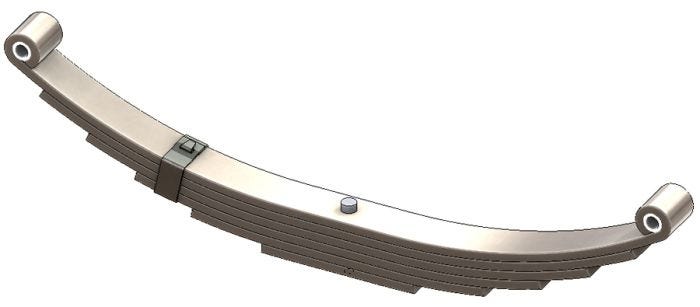

Utility Trailer Leaf Spring-Double Eye 6/Leaf 2480 lb. Capacity each

Alternate SKU

US-1042, US1042, UDB30006, UNA022, UNA-423, UNA423

Weight

25.20

Attribute Value
Product Name UNA-022
Leaf Width 1.75 in
Leaves 6
Length Axis 1 16.38 in
Length Axis 2 16.38 in
Free Arch Length 5 in
Load Rate 2480 lb
Bushings Included Yes
Grading Configuration 6/360
End 1 Attachment Type Up Turned Eye
End 1 Bushing PE-225
End 1 Bushing Material Nylon
End 1 Bushing Inside Diameter 0.5625 in
End 1 Attachment Inside Diameter 0.875 in
End 2 Attachment Type Up Turned Eye
End 2 Bushing PE-225
End 2 Bushing Material Nylon
End 2 Bushing Inside Diameter 0.5625 in
End 2 Attachment Inside Diameter 0.875 in
Suspension Grade Type Standard
Helper Spring No
End Type Double Eye
Free Length 30 in

Cross Reference

Company Sku
Automann UDB30006
Dayton US-1042
