STR-1004Z

Description

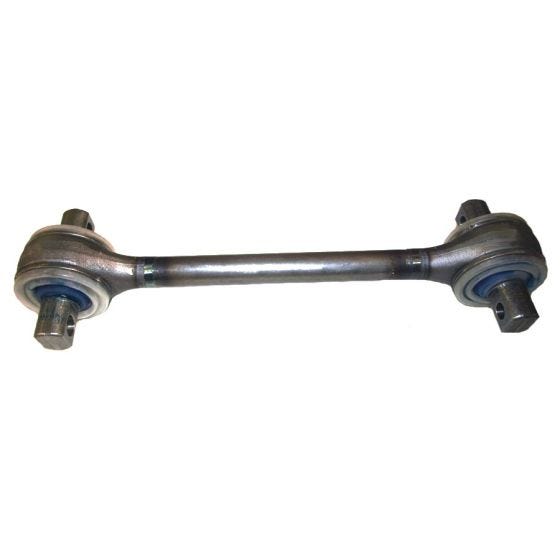

Genuine ZF Torque Rod 1-Piece S-S (17-11/32)

Alternate SKU

TMR549, TMR520C, TMR520E, TMR520NE, TMR520N, TMR520, 345-963, 345-240, 345-211, STR1004Z, 03-04327, 3-04327, 0304327, 304327, C65-6024-010440, C65-6024-000-010440, C65-6012-000-010440, C65-6012-010440, STR-1004, STR-1029

Weight

18.23

Specifications

Attribute Value
Product Name STR-1004Z
Make Peterbilt
Center To Center Length 17.34375 in
End 1 Type Straddle
End 2 Type Straddle
End 1 Bushing H-49210-000
End 1 Bolt Hole Diameter 0.75 in
End 1 Bolt Hole Center To Center Length 4.375 in
End 1 Bushing Angle 10
End 2 Bushing H-44695-000
End 2 Bolt Hole Diameter 0.625 in
End 2 Bolt Hole Center To Center Length 4.375 in
Rod Diameter 1.25 in
Bushings Included Yes
Adjustable No

Applications

Name
Peterbilt : Air Trac

Cross Reference

Company Sku
Automann TMR520
Dayton 345-211
Flagg/Triangle PB33
ZF 00011-0326

Skip to the end of the images gallery

Sealed ball design; not rebushable
