SSA-G63662
Description

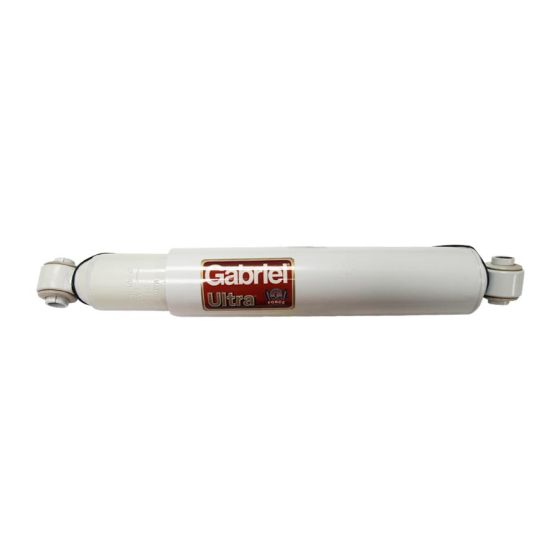

Genuine Gabriel Ultra LT Shock Absorber
Alternate SKU
M37021, G63662, 34676, 34777, 37103, SSAG63662
Weight
5.86
- Attribute Value
- Product Name SSA-G63662
- Upper Mount Type Eye Ring Bushing Steel Sleeve - Centered
- Lower Mount Type Eye Ring Bushing Steel Sleeve - Centered
- Compressed Length 15.05 in
- Extended Length 24.58 in
- Shock Stroke 9.53 in
- Length Measuring Points Bushing center to bushing center
- Gas Charged No
- Adjustable Damping No
- Bore Size 1.375 in
- Upper Mount Bushing Inside Diameter 0.5625 in
- Lower Mount Bushing Inside Diameter 0.5625 in
- Dust Shield Included Yes
- Type Telescopic
- Make Chevrolet, Dodge/Ram, GMC
- Company Sku
- ACDelco 88945411, 530-243
- Classic Ind. G63662
- Dayton M37021
- Gabriel 737990, G63662
- KYB 344365
- Monroe 37021, 34676, 34777, 37103, 37103, 37105, 911103
- Motorcraft CAT-777
- Rancho RS5262
- Sachs 310 325
- TRW JGT4456S, JGT6038S
