SSA-77817

Description

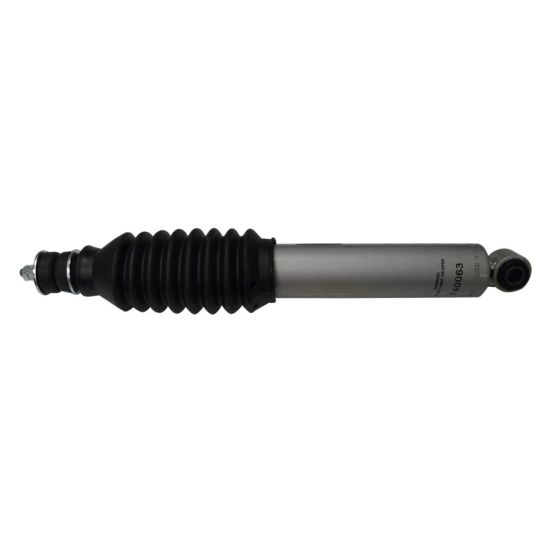

Genuine Gabriel MaxControl Monotube Shock Absorber
Alternate SKU
77817, SSA77817
Weight
3.94
  • Attribute Value
  • Product Name SSA-77817
  • Upper Mount Type Single Stud
  • Lower Mount Type Eye Ring Bushing Steel Sleeve - Centered
  • Compressed Length 10.94 in
  • Extended Length 15.73 in
  • Shock Stroke 4.79 in
  • Length Measuring Points Bushing center to stud base
  • Gas Charged Yes
  • Adjustable Damping No
  • Bore Size 1.8125 in
  • Upper Mount Stud Length 2.37 in
  • Upper Mount Stud Thread 3/8 in-24
  • Lower Mount Bushing Inside Diameter 14 mm
  • Dust Shield Included Yes
  • Boot Included Yes
  • Type Telescopic
  • Make Chevrolet, GMC, Hummer
  • Company Sku
  • ACDelco 540-5069
  • Automann A77817
  • Chevrolet 88963046, 89038652
  • GMC 88963046, 89038652
  • Gabriel 77817, 740063
  • KYB 554247, 554319, KG54340
  • Monroe 911507, MONRS55288
  • Rancho RS7295
