SSA-77614

Description

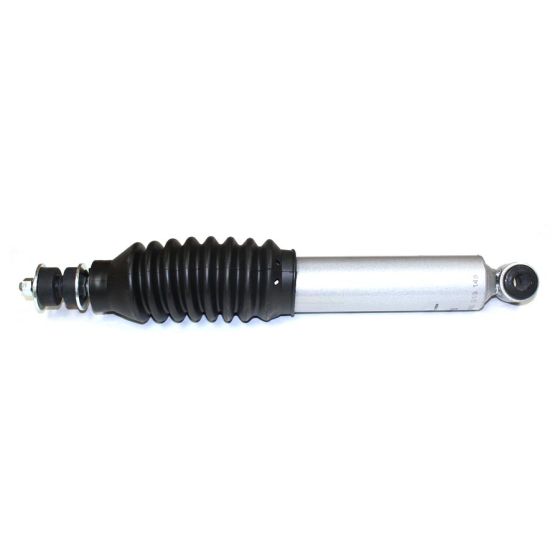

Genuine Gabriel MaxControl Monotube Shock Absorber
Alternate SKU
77614, SSA77614
Weight
3.30
  • Attribute Value
  • Product Name SSA-77614
  • Type Telescopic
  • Make Bluebird, Ford, Thomas
  • Upper Mount Type Single Stud
  • Lower Mount Type Eye Ring Bushing
  • Compressed Length 10.05 in
  • Extended Length 15.04 in
  • Shock Stroke 4.99 in
  • Length Measuring Points Bushing center to stud base
  • Gas Charged Yes
  • Adjustable Damping No
  • Bore Size 1.8125 in
  • Upper Mount Stud Length 2.49 in
  • Upper Mount Stud Thread 3/8 in-24
  • Lower Mount Bushing Inside Diameter 0.625 in
  • Dust Shield Included Yes
  • Boot Included Yes
  • Company Sku
  • Automann A77614
  • Gabriel 77614, 740028
  • KYB 554177, 554236, 554238, 554274, 555038, KG5489, KG6413
  • Monroe 555031
