SES-9001L

Description

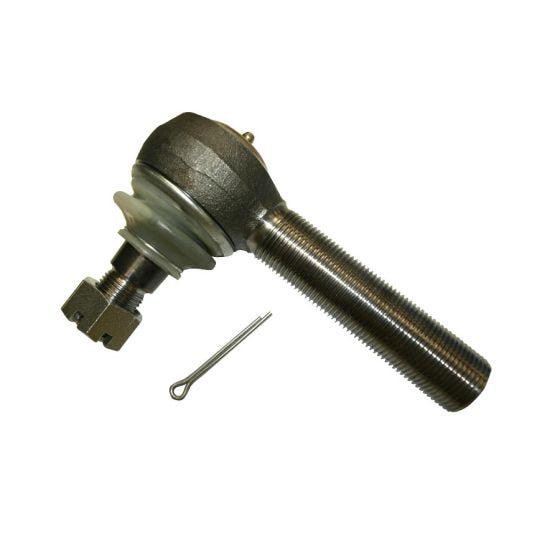

TIE ROD END-L 6.0in Straight x 1-1/8in-12 (LH THREAD)

Alternate SKU

310-456, 310456, 462.ES9001L, 462ES9001L, R230140, E10138, SES9001L, 64002001, 65034001, ES800423

Weight

4.00

Attribute Value
Product Name SES-9001L
End 1 Thread Diameter 1.125 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 6 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 0.97 in
Drop Length 0 in
Taper Diameter-major 1.11 in
Taper Height 2.22 in
Taper Length 1.12 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES9001L
Dayton 310-456
Meritor E10138
