SES-411L

Description

TIE ROD END-L 9.18in Straight x 1-1/8in-12 (LH THREAD)

Alternate SKU

310-215, 310215, 462.ES411L, 462ES411L, R230028, E4630, SES411L, ES411L, L20LV8087A13, FTR411L

Weight

4.90

Attribute Value
Product Name SES-411L
End 1 Thread Diameter 1.125 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 9.18 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 0.97 in
Drop Length 0 in
Taper Diameter-major 1.1 in
Taper Height 2.46 in
Taper Length 1.04 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES411L
Dayton 310-215
Meritor E4630

Skip to the end of the images gallery

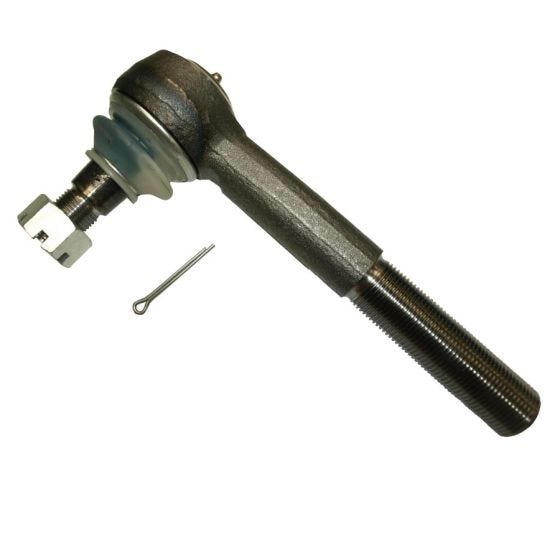

main product photo
