SES-3274L

Description

TIE ROD END-L 5.44in Straight x 1-1/8in-12 (LH THREAD)

Alternate SKU

310-467, 310467, 462.ES3274L, 462ES3274L, 310-468, 310468, R230142, E10108, SES3274L, 15619285, E10108, R230141

Weight

4.20

Attribute Value
Product Name SES-3274L
Type Straight
Taper Length 1.14 in
Greasable Yes
End 1 Thread Diameter 1.125 in
End 1 Threads Per Inch 12
End 1 Gender Male
End 2 Gender Male
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End (in) 5.44 in
Length - Stud Center to End 5.4375 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Taper Diameter-minor 1.04 in
Drop Length 0 in
Taper Diameter-major 1.18 in
Taper Height (in) 2.42 in
Taper Height 2.42 in
Grease Fitting Included Yes
Grease Fitting Position Bottom

Cross Reference

Company Sku
Automann 462.ES3274L
Dayton 310-467
Meritor E10108

Skip to the end of the images gallery

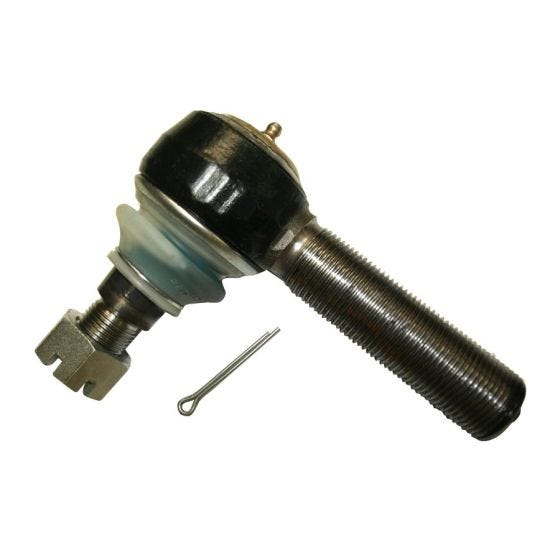

main product photo
