SES-3252R

Description

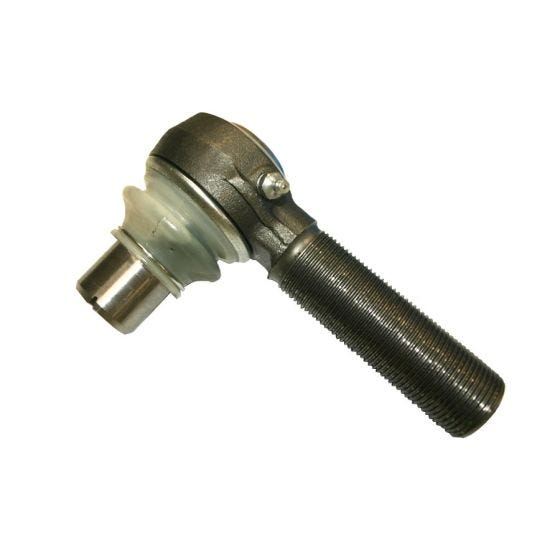

TIE ROD END 5.75in Straight x 1-1/4in -12 (RH THREAD)(NO THREAD STUD)
Alternate SKU
310-435, 310435, 462.ES3252R, 462ES3252R, R230417, E9881, SES3252R, ES3252R, 18QK201, 18QK204M2
Weight
5.60
  • Attribute Value
  • Product Name SES-3252R
  • End 1 Thread Diameter 1.25 in
  • End 1 Threads Per Inch 12
  • End 1 Thread Direction Clockwise (Right)
  • Length - Stud Center to End 5.75 in
  • Type Straight
  • Taper Diameter-minor 1.25 in
  • Drop Length 0 in
  • Taper Diameter-major 1.25 in
  • Taper Height 2 in
  • Taper Length 0 in
  • Greasable Yes
  • Grease Fitting Included Yes
  • Grease Fitting Position Bottom
  • End 1 Gender Male
  • End 2 Gender Male
  • Company Sku
  • Automann 462.ES3252R
  • Dayton 310-435
  • Meritor E9881
