SES-3034R

Description

TIE ROD END-R 7.5in Straight x 1-1/4in-12 (RH THREAD)

Alternate SKU

310-398, 310398, 462.ES3034R, 462ES3034R, R230102, E5472, SES3034R, ES3034R, L24SV8103C12

Weight

5.60

Attribute Value
Product Name SES-3034R
End 1 Thread Diameter 1.25 in
End 1 Threads Per Inch 12
End 1 Thread Direction Clockwise (Right)
Length - Stud Center to End 7.375 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 1.08 in
Drop Length 0 in
Taper Diameter-major 1.25 in
Taper Height 2.6 in
Taper Length 1.36 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES3034R
Dayton 310-398
Meritor E5472

Skip to the end of the images gallery

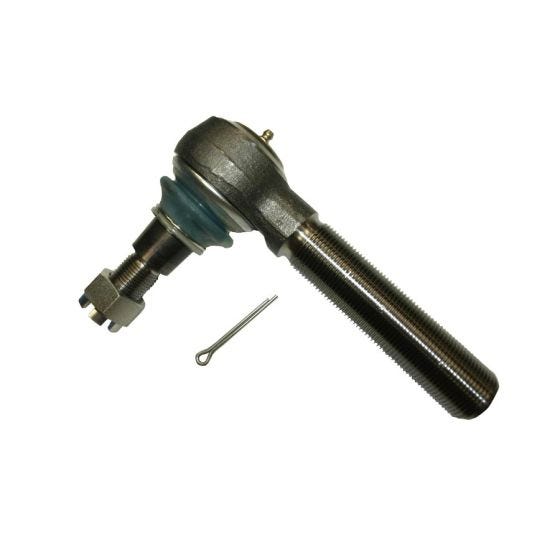

main product photo

Ball Joint Angle: 32-deg. SES-3034R / 40-deg. SES-2091R
