SES-3031L

Description

TIE ROD END-L 12.69 x Offset x 1-7/8in-12 (LH THREAD)

Alternate SKU

310-396, 310396, 462.ES3031L, 462ES3031L, R230105, E6857, SES3031L, ES3031L

Weight

12.80

Attribute Value
Product Name SES-3031L
End 1 Thread Diameter 1.875 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 12.6875 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Bent
Taper Diameter-minor 1.08 in
Drop Length 2.32 in
Taper Diameter-major 1.25 in
Taper Height 2.62 in
Taper Length 1.36 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES3031L
Dayton 310-396
Flagg/Triangle ES3031L
Meritor E6857

Skip to the end of the images gallery

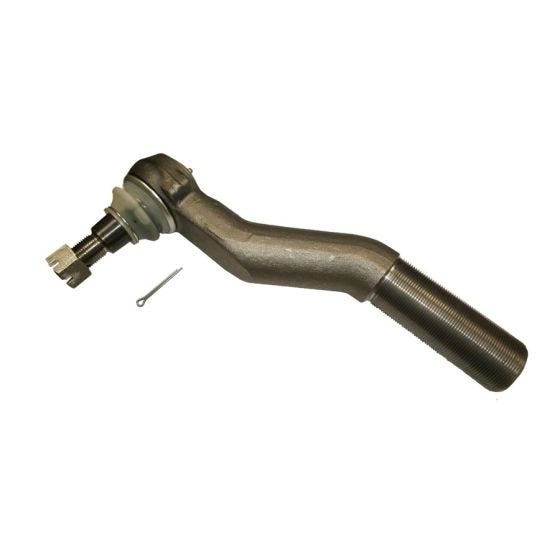

main product photo
