SES-2091RS
Description

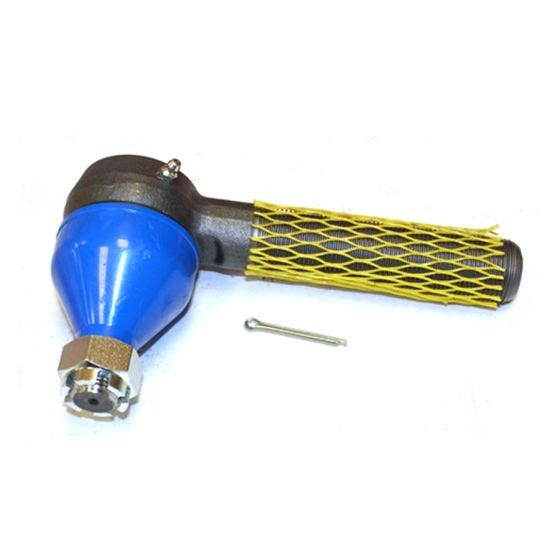

TIE ROD END-R 7.5in Straight x 1-1/4in-12 (RH THREAD) w/ Side Grease Fitting
Alternate SKU
462.ES2091RS, 462ES2091RS, ES2091RS, R230102, A3144Z546, 10QH248P5, ES2091RS
Weight
5.36
- Attribute Value
- Product Name SES-2091RS
- End 1 Thread Diameter 1.25 in
- End 1 Threads Per Inch 12
- End 1 Thread Direction Clockwise (Right)
- Length - Stud Center to End 7.4 in
- End 2 Thread Diameter 0.875 in
- End 2 Threads Per Inch 14
- End 2 Thread Direction Clockwise (Right)
- Type Straight
- Taper Diameter-minor 1.08 in
- Drop Length 0 in
- Taper Diameter-major 1.25 in
- Taper Height 2.71 in
- Taper Length 1.46 in
- Greasable Yes
- Grease Fitting Included Yes
- Grease Fitting Position Side
- End 1 Gender Male
- End 2 Gender Male
- Company Sku
- Automann 462.ES2091RS
- Dayton 310-434
- Flagg/Triangle ES2091RS
- Mack 10QH248P5
- Meritor A3144Z546
