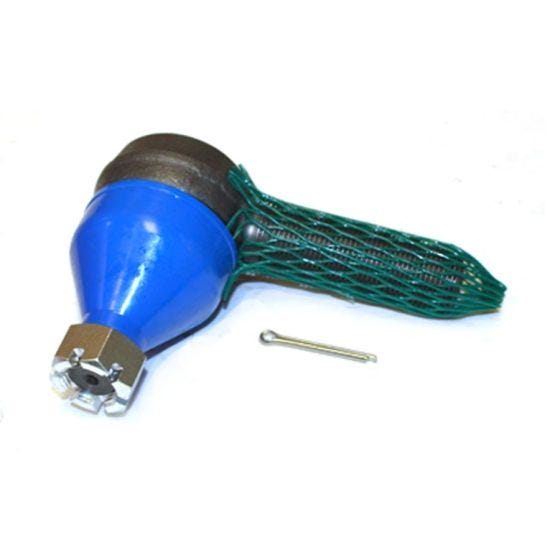

SES-187L

Description

TIE ROD END-L 4.8in Straight x 1-1/8in-12 (LH THREAD)

Alternate SKU

462.ES187L, 462ES187L, 310-121, 310121, ES187L, A23144K193, A23144K93, A3144Q225, R230060, R230088, B5TZ3A131A, C1TZ3A131C, 110362R92, 894049R93, FTR187L, 10QH243P2, 10QH248P2, 872470, 1643278, 2456810, 8875934, 103712

Weight

4.08

Specifications

Attribute Value
Product Name SES-187L
End 1 Thread Diameter 1.125 in
End 1 Threads Per Inch 12
End 1 Thread Direction Counterclockwise (Left)
Length - Stud Center to End 4.8 in
End 2 Thread Diameter 0.875 in
End 2 Threads Per Inch 14
End 2 Thread Direction Clockwise (Right)
Type Straight
Taper Diameter-minor 0.97 in
Drop Length 0 in
Taper Diameter-major 1.102 in
Taper Height 2.46 in
Taper Length 1.04 in
Greasable Yes
Grease Fitting Included Yes
Grease Fitting Position Bottom
End 1 Gender Male
End 2 Gender Male

Cross Reference

Company Sku
Automann 462.ES187L
Chevrolet 2456810, 8875934
Dayton 310-121
Dodge/Ram 1643278
Flagg/Triangle ES187L
Ford B5TZ3A131A, C1TZ3A131C
GMC 2456810, 8875934
Mack 10QH243P2, 10QH248P2
Meritor A23144K193
Navistar/International 110362R92, 894049R93
