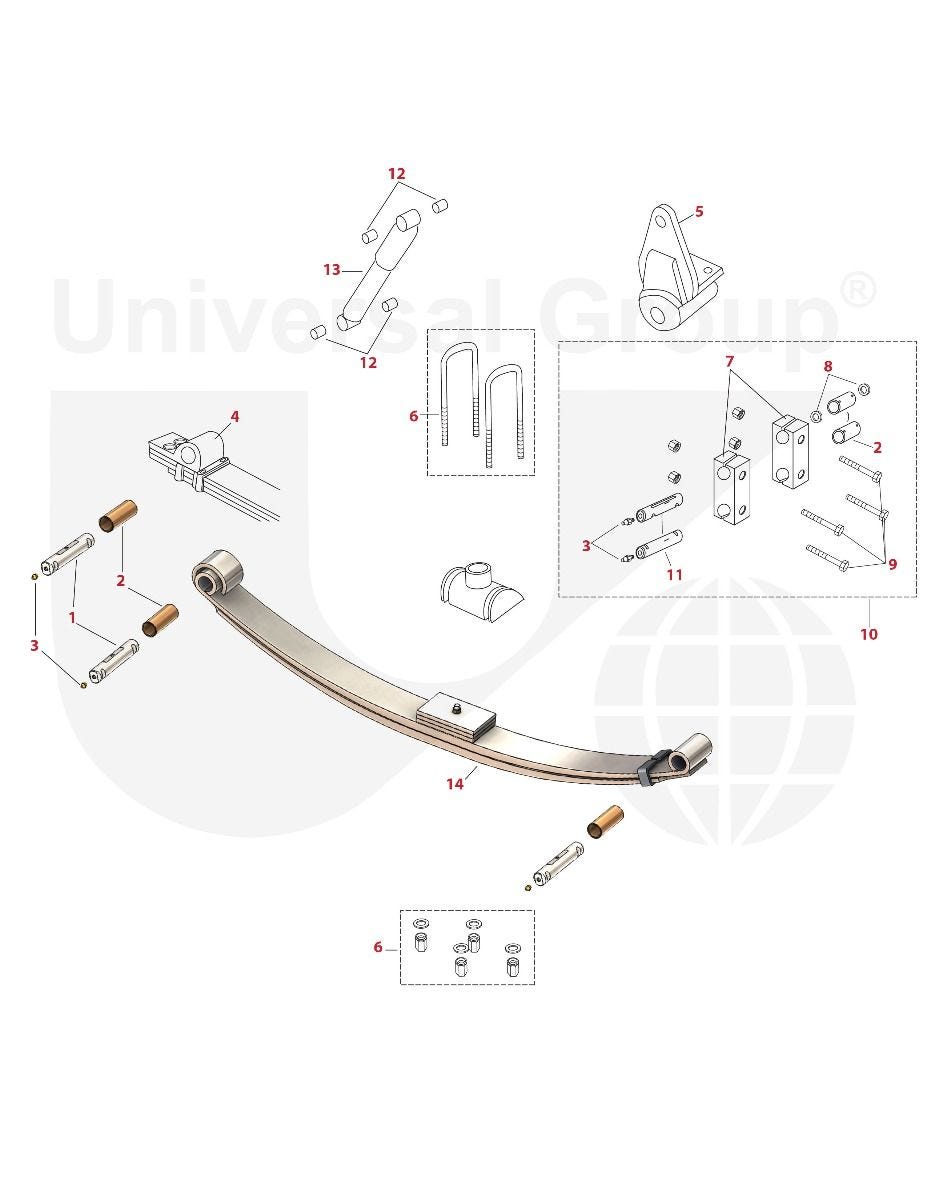

Peterbilt : Conventional / Cab Over 3.5

For items with multiple options, see table below.

1 2 2 3 3 7 11 13 14 12

Grouped product items
No.	SKU	Product Name	Description	Notes

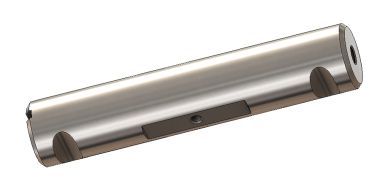

1	SB-1335	SB-1335	SPRING PIN 1-1/4in OD x 6-3/16in L x 5in C-C SLOTS
2	SBM-RNG	SBM-RNG	BI-METAL BUSHING 1-1/2in OD x 1-1/4in ID x 3in OAL
2	SBM-RNI	SBM-RNI	BI-METAL BUSHING 1-1/2in OD x 1-1/4in ID x 3-1/2in OAL
3	SGZ-18-00	SGZ-18-00	Zerk Grease Fitting 1/8in-27 PTF Straight Standard 5/8in Length	For longer lengths use SGZ-18-00L or longer H-30087-000
11	SB-1402	SB-1402	SPRING PIN 1-1/4in OD x 5-59/64in L x 4-7/16 C-C SLOTS	Supersedes SB-1336
12	SSA-401754	SSA-401754	Genuine Gabriel Shock Absorber Bushing EB3 style for 2-3/8in OD Eye - 1in Stud
13	SSA-85302	SSA-85302	Genuine Gabriel Fleetline 85000 Shock Absorber
13	SSA-85012	SSA-85012	Genuine Gabriel Fleetline 85000 Shock Absorber
14	75-128-ME	75-128-ME	Tapered Leaf Spring

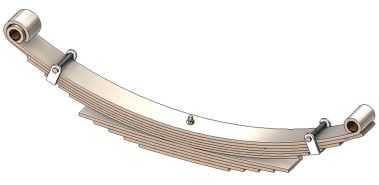

14	75-130-CA	75-130-CA	Two-Stage Leaf Spring	TWO STAGE
