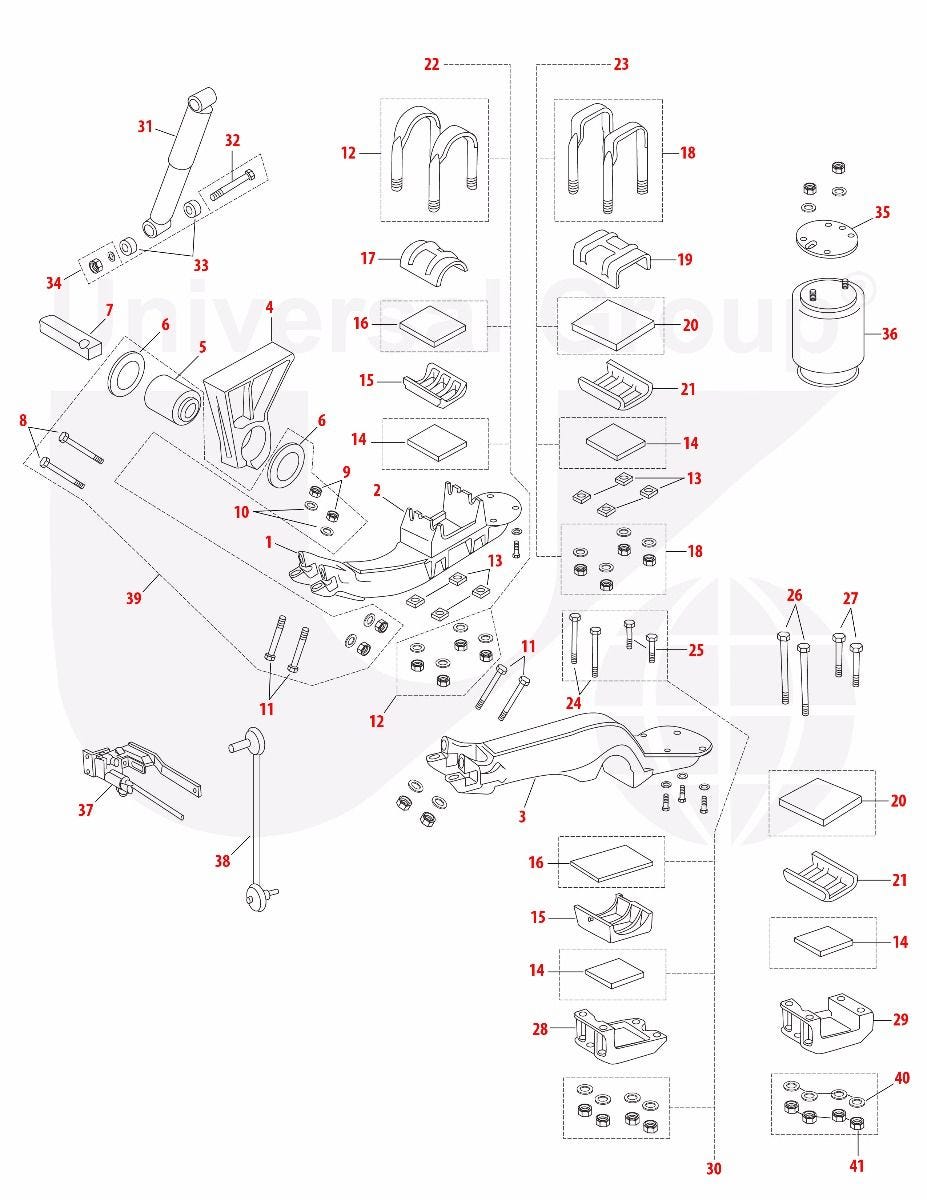

Neway / Holland : AR120 / AR125 / AR165 - Trailer Air Susp.

For items with multiple options, see table below.

2 9 11 11 12 14 14 14 14 15 15 16 16 31 36

Grouped product items
No.	SKU	Product Name	Description	Notes
11	SN-93003633	SN-93003633	Hex Bolt 3/4in-10 x 5in	Special Head w/ Tab
12	SFT-224K	SFT-224K	U-Bolt Kit 1in-14 D x 6-5/16in W x 9-1/2in L Frg Top RND	Includes: (2) U-Bolts, (4) Washers and (4) Deep Nuts
12	SFT-230K	SFT-230K	U-Bolt Kit NEWAY 1in-14 D x 6-3/8in W x 12-1/2in L - Round Forged Top
15	SN-90001082	SN-90001082	AXLE ADAPTER ROUND
31	SSA-83126	SSA-83126	Genuine Gabriel Fleetline 83000 Shock Absorber
31	SSA-83125	SSA-83125	Genuine Gabriel Fleetline 83000 Shock Absorber

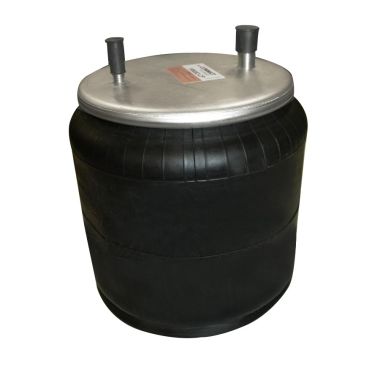

36	AB-9082	AB-9082	Air Spring-Rolling Lobe w/ Composite Piston	Similar to AB-1R12-509.
36	VM1-9101	VM1-9101	Air Spring - Rolling Lobe w/ Composite Piston
36	AB-9121	AB-9121	Air Spring-Rolling Lobe w/ Composite Piston
