Neway / Holland : ART500 Series - Lift Axle Susp.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

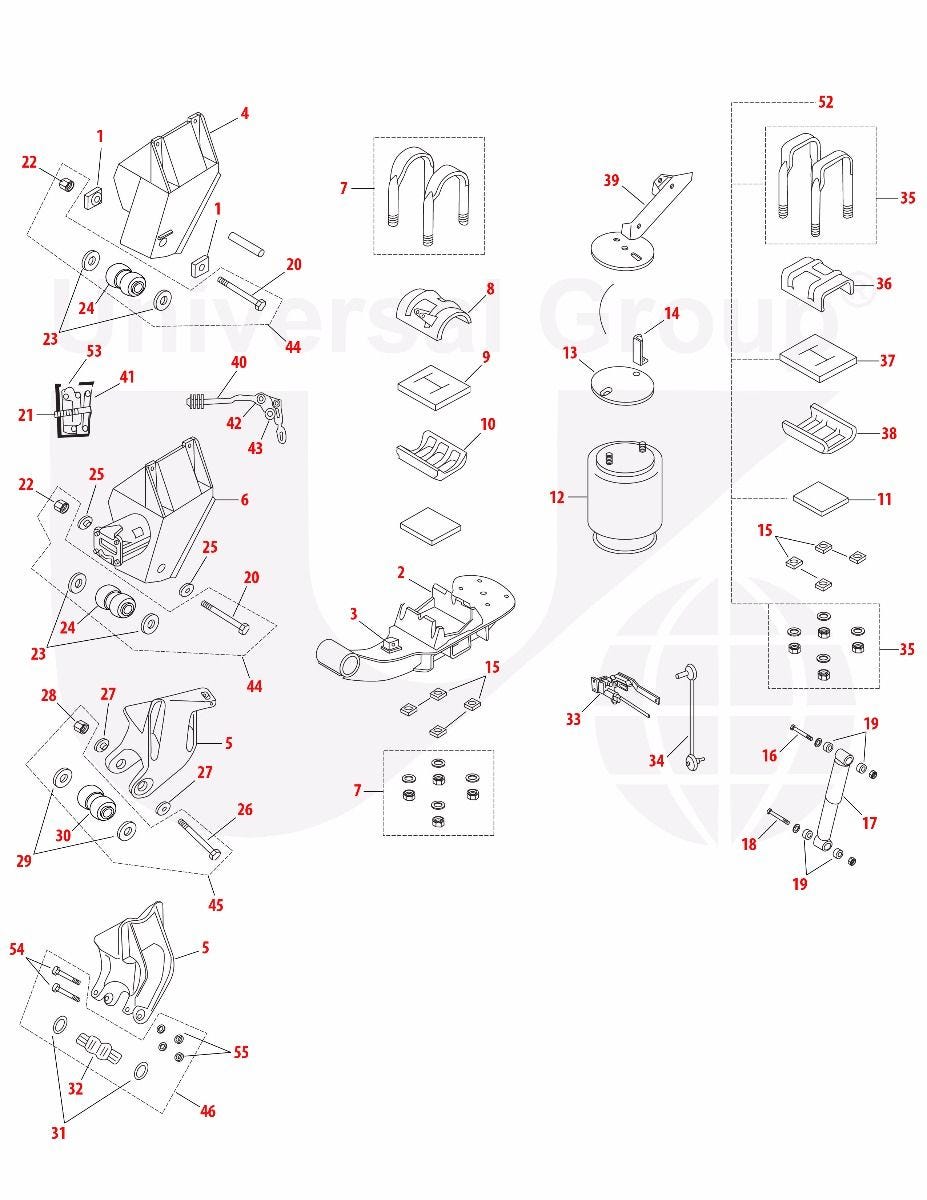

Neway / Holland : ART500 Series - Lift Axle Susp.

For items with multiple options, see table below.

2 7 9 10 11 12 17 20 20 22 22 24 24 34 44

Grouped product items
No.	SKU	Product Name	Description	Notes
7	SFT-226K	SFT-226K	U-Bolt Kit NEWAY 1in-14 D x 6-5/16in W x 10-1/2in L - Round Forged Top
7	SFT-230K	SFT-230K	U-Bolt Kit NEWAY 1in-14 D x 6-3/8in W x 12-1/2in L - Round Forged Top
10	SN-90001082	SN-90001082	AXLE ADAPTER ROUND
12	VM1-9101	VM1-9101	Air Spring - Rolling Lobe w/ Composite Piston
12	AB-9082	AB-9082	Air Spring-Rolling Lobe w/ Composite Piston	Similar to AB-1R12-509.
17	SSA-83128	SSA-83128	Genuine Gabriel Fleetline 83000 Shock Absorber	Gas shock upgrade: SSA-89436
17	SSA-83127	SSA-83127	Genuine Gabriel Fleetline 83000 Shock Absorber
17	SSA-85000	SSA-85000	Genuine Gabriel Fleetline 85000 Shock Absorber	Gas shock upgrade: SSA-89436

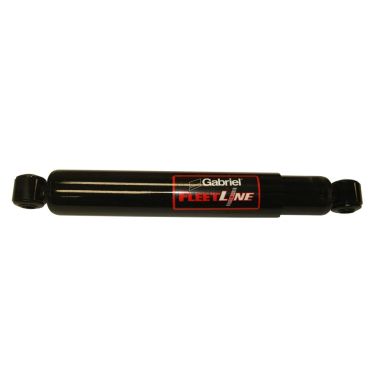

17	SSA-85006	SSA-85006	Genuine Gabriel Fleetline 85000 Shock Absorber
24	SWC-10050	SWC-10050	Genuine Watson & Chalin RUBBER PIVOT BUSHING 3.512in OD x 1-1/8in ID x 5-1/4in OAL
24	SN-90008139	SN-90008139	Beam End Pivot Bushing Rubber-Neway 3-1/2in OD x 1-1/8 ID x 5-1/4 L
44	SN-SRK145	SN-SRK145	Pivot Bushing Service Repair Kit 145 - Neway
