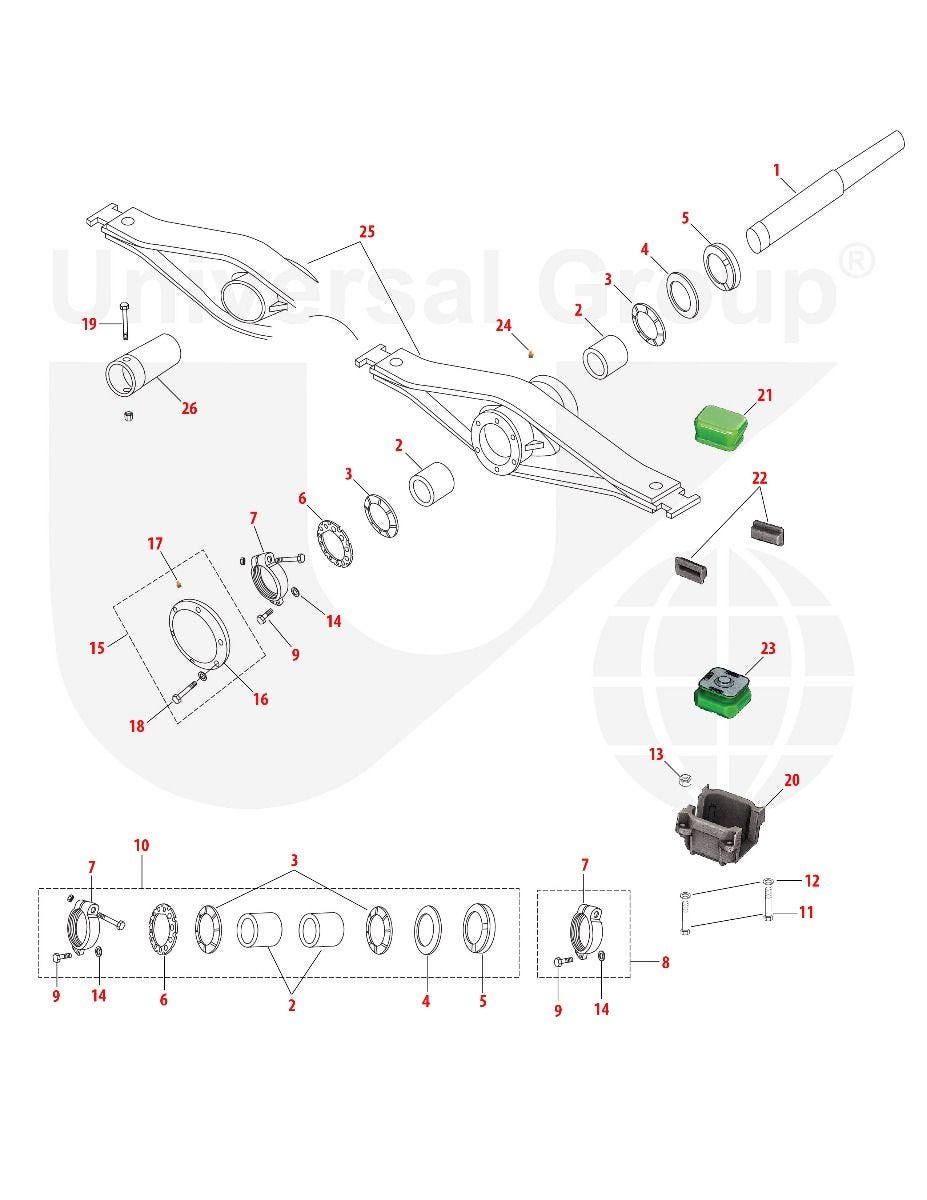

Mack : SW, SWW Walking Beam

For items with multiple options, see table below.

___ [10] SM-3.5 KIT W/B: includes 2, 3, 4, 5, 6, 7, 9, 14 SM-3.5 KIT: includes 3, 4, 5, 6, 7, 9, 14 [15] SE-456: Includes 16, 17, 18 ___ [10] SM-3.5 KIT W/B: includes 2, 3, 4, 5, 6, 7, 9, 14 SM-3.5 KIT: includes 3, 4, 5, 6, 7, 9, 14
Grouped product items
No. Sku Product Name Description Alternate SKU
2 TBM-255 TBM-255 BRONZE TRUNNION BUSHING WITH 3/8in OIL HOLE 3.752in OD x 3.508in ID x 3.43in OAL 322-114, 322114, MIB157, 10QK255, MIB255, 2091259, S7047, A846, E2925, 97625, TBM255, MX300
3 SM-001 SM-001 BRONZE THRUST WASHER MACK 3-1/2 Bar 5.25in OD x 3.5in ID x 0.25in Thick 334-443, 334443, MX302, 43QK116, MCK1, E3698, 2059847, S7031, 97539, SM001, 334-1176, 3341176
4 SM-002 SM-002 STEEL THRUST WASHER MACK 3-1/2 Bar 5.375in OD x 3.5in ID x 0.312in Thick 334-444, 334444, MX303, 43QK117, MCK2, E3699, 2060578, S7032, SM002, 97541
5 SM-006 SM-006 TRUNNION SEAL MACK 3-1/2 Bar 334-445, 334445, MX301, 88AX446, MCK6, E3187, 2060943, S7036, SM006, 97542
6 SM-004 SM-004 TRUNNION LOCK RING (D WASHER) 334-442, 334442, MX305, 23QJ112B, MCK4, E3915, 2059482, S7033, SM004, 97538,
7 SM-011 SM-011 TRUNNION COLLAR NUT 3-5/16in-12 x (2) 3/8in-24 MACK 334-441, 334441, M1600, 25QJ223, E677-62, E67762, E3700, 2058752, S7037, SM011, 97536,
3,4,5,6,7,9,14 SM-3.5 KIT SM-3.5 KIT MACK TRUNNION 3.5 KIT (ONE SIDE) 334-580A, 334580A, MTA501, SM35KIT, SM3.5KIT, SM-3.5KIT, MCK19
10 SM-3.5 KIT W/B SM-3.5 KIT W/B MACK TRUNNION 3.5 KIT WITH BUSHING SM35KITW/B
13 H-04842-000 H-04842-000 GENUINE HENDRICKSON LOCK NUT 7/8in-14 UNF SLN-106, SLN106, 004842-000, 4842-000, 004842000, 4842000, 04842-000, 04842000, LN106, E1835, 209530, HE1007, H04842000, 130564R-1, 130564R1, 334-188, 334188
15 SE-456 SE-456 TRUNNION END GREASE CAP Mack 3.5in Bar 4in Spring 334-468, 334468, M1158, 97QL339P2, E456-62, E45662, E3697, 2058021, S7026, M1158K, SE456, 334-1397, 3341397
17 SGR-18-05 SGR-18-05 Grease Relief Fitting 1/8in-27 PTF 5psi G472, SG-472, SG472, 334-545, 334545, SGR1805
20 SE-412 SE-412 INSULATOR BOX 338-746, 338746, M1070, 52QK418BP4, E412-62, E41262, E3688, 2044873, S5014, SE412,
21 PAD-365A-CH PAD-365A-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER) 325-112, 325112, ABP1, 10QK365A, MP1, E2917, 2079571, MP365A, PAD-365A, PAD365ACH, PAD365A, 10QK1065A, 25121508, 09-7593, 9-7593, 097593, 97593
21 PAD-365AU-US PAD-365AU-US LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM) 325-112U, 325112U, ABP1UB, 10QK365A, MP10, E-7481, E7481, MP1, E2917, 2079571, MP365A, PAD-365AU, PAD365AU, 10QK1065A, 25121508, 09-7593, 9-7593, 097593, 97593, PAD365AUUS
21 PAD-370-CH PAD-370-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER) 325-113, 325113, ABP4, 10QK370, MP4, E2919, 2080301, MP370, PAD-370, PAD370CH, PAD370, 25115012, 09-7595, 9-7595, 097595, 97595
21 PAD-370U-US PAD-370U-US LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM) 325-113U, 325113U, ABP4UB, 10QK370, MP4, E-8667, E8667, E2919, 2080301, MP370, ABP4, PAD-370, PAD370, 25115012, 09-7595, 9-7595, 097595, 97595, PAD370UUS
21 PAD-32B-CH PAD-32B-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER) 325-108, 325108, ABP5, MP5, E3679, 97597, 2081032, MP32BP1, 32B-CH, 32B, 32BCH, 10QK32BP1, PAD32BCH
22 SE-316 SE-316 SPACER BLOCK 338-729, 338729, M878, 13QK246, E316-62, E31662, E3689, 2052908, S5005, SE316
23 PAD-36B PAD-36B LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER) 325-110, 325110, ABP2, PAD36B, 10QK36B, MP2, E2920, 09-7594, 9-7594, 097594, 97594, 21036254, 10QK388
23 PAD-36BU-US PAD-36BU-US LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM) 325-110U, 325110U, ABP2UB, PAD-36BU, PAD36BUUS, 36B, 10QK36B, ABP2, MP2, 325-110, 325110, PAD36BU, 10QK388, 325-123, 325123, 21036254, E2920, 09-7594, 9-7594, 097594, 97594, MA3600A
23 PAD-36BP PAD-36BP LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER PREMIUM) 325-110, 325110, ABP2P, PAD-36B, PAD36B, 10QK36B, MP2, ABP2, E2920, 09-7594, 9-7594, 097594, 97594, 21036254, 10QK388, PAD36BP
23 PAD-372-CH PAD-372-CH LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER) 325-114, 325114, ABP6, MP6, E3680, 97596, 2080667, MP372, 372-CH, 372, 372CH, 10QK372, PAD372CH
23 PAD-372U-US PAD-372U-US LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM) 325-124, 325124, ABP6UB, PAD-372U, PAD372U, 10QK389, MP8, PAD372UUS
24 SGZ-18-00 SGZ-18-00 Zerk Grease Fitting 1/8in-27 PTF Straight Standard 5/8in Length G1803, 334-475, 334475, SG-1803, SG1803, SGZ1800
