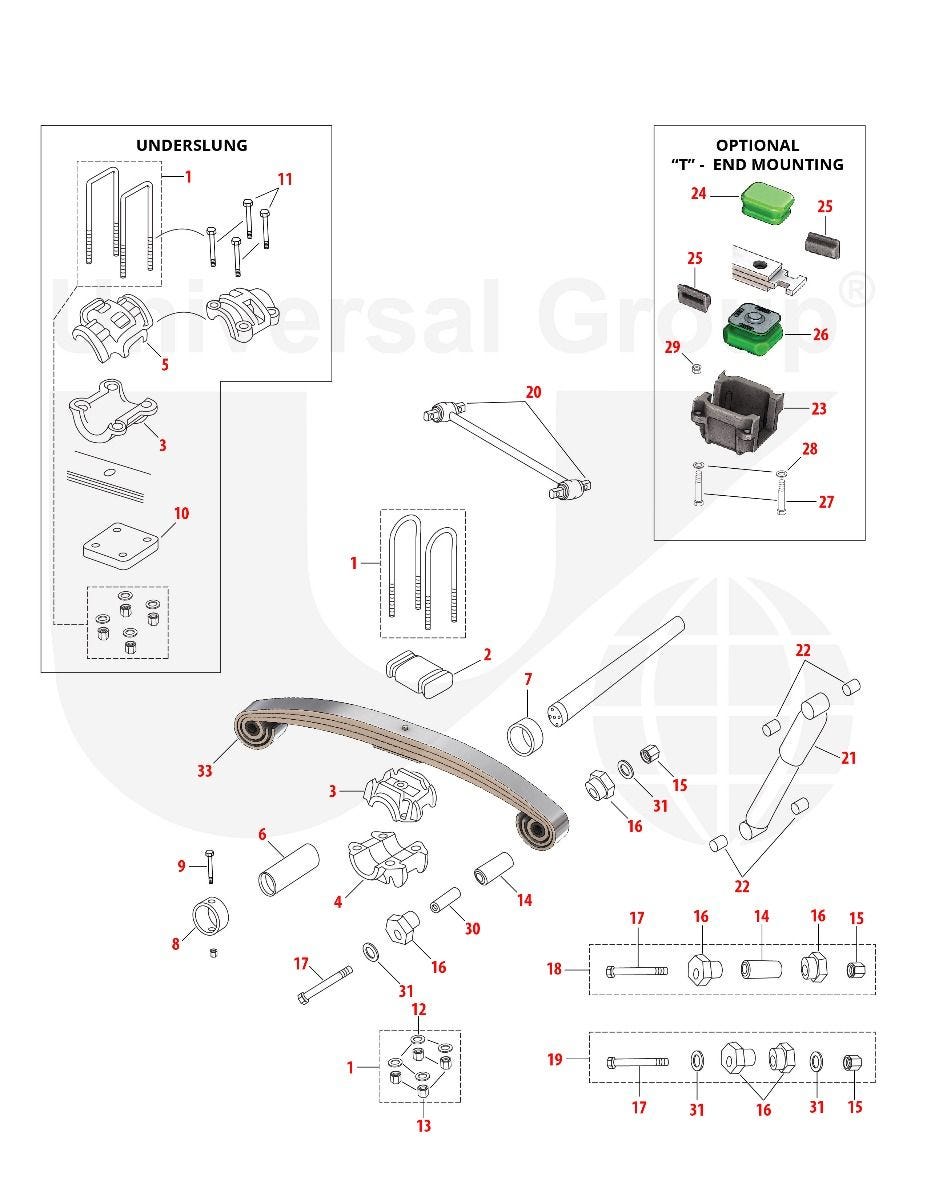

Mack : ST34 Tapered

For items with multiple options, see table below.

4 6 8 12 13 15 15 20 21 22 22 24 25 26 29 33
Grouped product items
No. SKU Product Name Description Notes

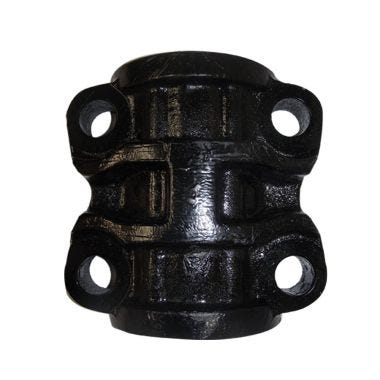

4 SE-449 SE-449 SE-449 LOWER TRUNNION HALF

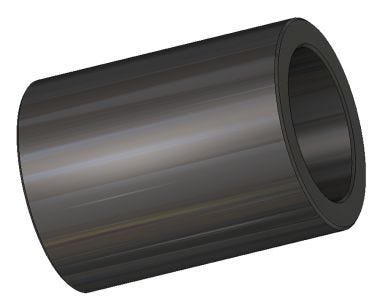

6 TBM-219P2 TBM-219P2 TBM-219P2 RUBBER TRUNNION BUSHING 4.687in OD x 3.437in ID x 6-1/4in OAL
8 SM-009 SM-009 SM-009 OUTER SPACER NEW STYLE
12 UBW-118 UBW-118 UBW-118 U-Bolt Washer 1-1/8in (qty: 24)

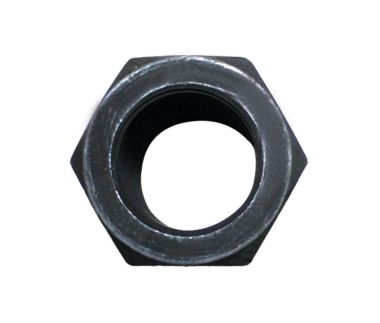

13 DN-118 DN-118 DN-118 U-Bolt Deep Nut 1-1/8in-12 Grade 8 (qty: 24)
15 SLN-1 SLN-1 SLN-1 Steel Lock Nut 1in-14 UNF Grade C (qty: 10)

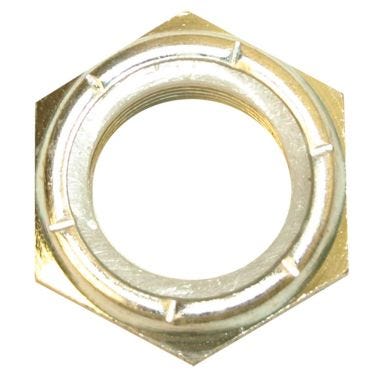

15 H-29749-000 H-29749-000 H-29749-000 GENUINE HENDRICKSON NYLON INSERT LOCK NUT 1-1/4in-12 UNF Lock Nut
20 H-44695-000 H-44695-000 H-44695-000 Genuine Hendrickson Torque Rod Bar Pin Bushing (5/8in) 5/8" Bolt Holes
20 SUB-44695 SUB-44695 SUB-44695 TORQUE ROD BAR PIN BUSHING POLYURETHANE 2-3/4 OD x 4-3/8 C-C x 5/8in BOLT 5/8" Bolt Holes
20 H-44694-000 H-44694-000 H-44694-000 GENUINE HENDRICKSON TORQUE ROD BAR PIN BUSHING 5/8" Bolt Holes
21 SSA-85305 SSA-85305 SSA-85305 Genuine Gabriel Fleetline 85000 Shock Absorber
22 SSA-401754 SSA-401754 SSA-401754 Genuine Gabriel Shock Absorber Bushing EB3 style for 2-3/8in OD Eye - 1in Stud

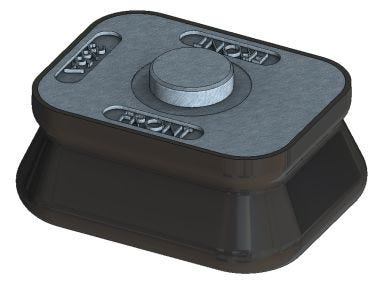

24 PAD-365A-CH PAD-365A-CH PAD-365A-CH LEAF SPRING INSULATOR PAD - UPPER MACK (RUBBER)

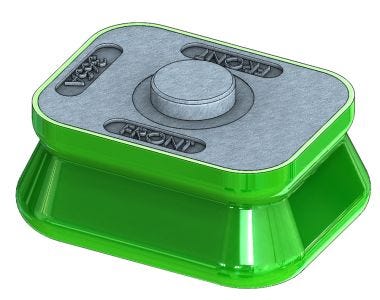

24 PAD-365AU-US PAD-365AU-US PAD-365AU-US LEAF SPRING INSULATOR PAD - UPPER MACK (POLYURETHANE PREMIUM)
25 SE-316 SE-316 SE-316 SPACER BLOCK
26 PAD-36B PAD-36B PAD-36B LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER)
26 PAD-36BU-US PAD-36BU-US PAD-36BU-US LEAF SPRING INSULATOR PAD - LOWER MACK (POLYURETHANE PREMIUM)
26 PAD-36BP PAD-36BP PAD-36BP LEAF SPRING INSULATOR PAD - LOWER MACK (RUBBER PREMIUM)
29 H-04842-000 H-04842-000 H-04842-000 GENUINE HENDRICKSON LOCK NUT 7/8in-14 UNF

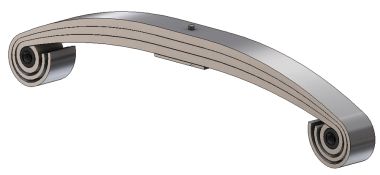

33 62-269-US 62-269-US 62-269-US Tapered Leaf Spring REPLACES 62-211
